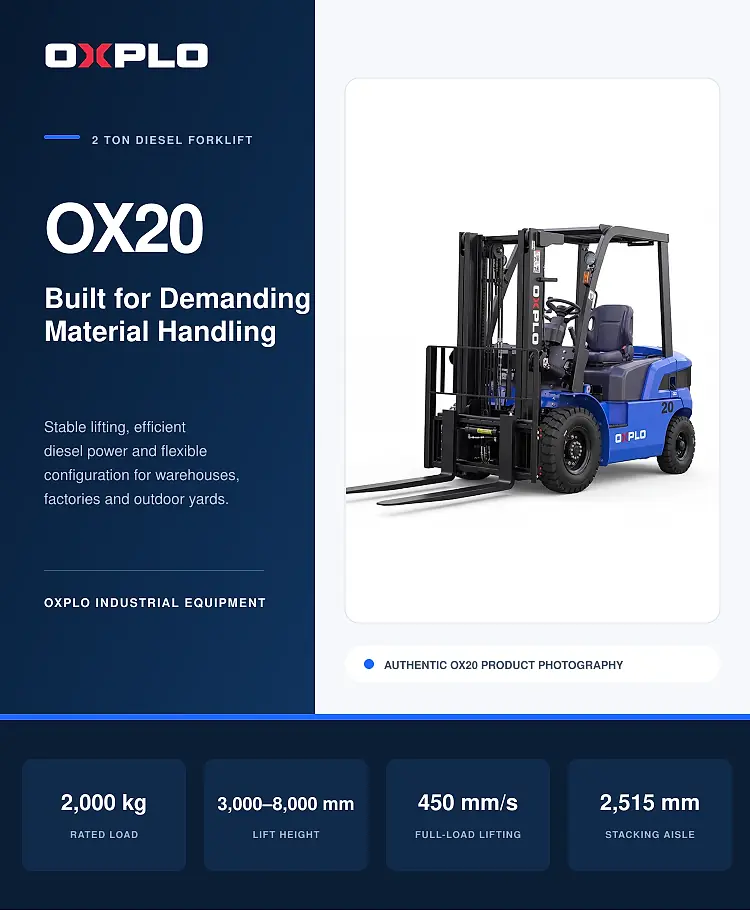

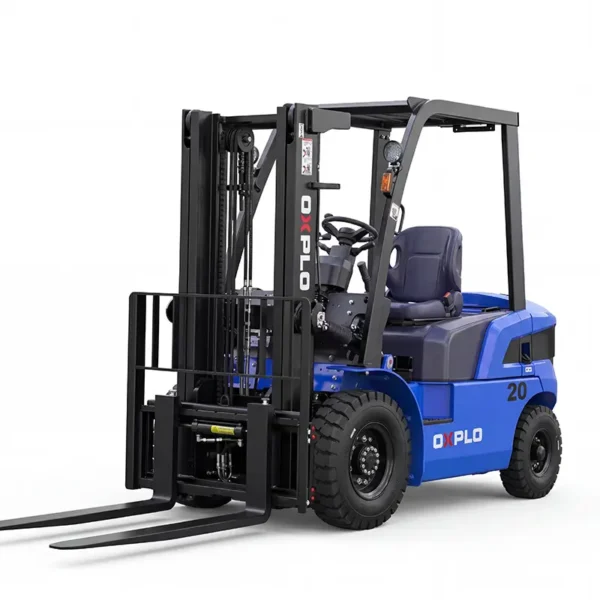

OX20 Diesel Forklift
| Rated lifting load | 2000Kg |
| Mast Type/Lift Height | 2-Stage/3m |
Product Details
| Moldel | OX20 | ||
| Power | Diesel | No-load maximum lifting speed | 530mm/s |
| Rated lifting load | 2000Kg | Full-load maximum lifting speed | 500mm/s |
| Load center distance | 500mm | No-load Maximum driving speed | 20Km/h |
| Driving mode | Seat driving | Full-load Maximum driving speed | 18Km/h |
| With fork | 3590mm | Full-load maximum gradeability | 20% |
| Without fork | 2520mm | Service weight- no load | 3460Kg |
| Width | 1170mm | Tire no. (F/R) | 2/2 |
| Overall lowered height | 1985mm | Tire type (F/R) | Pneumatic Tyre |
| Overhead guard height | 2110mm | Tire size (F) | 7.00×12-12PR |
| Wheelbase | 1600mm | Tire size (R) | 6.00×9-10PR |
| Front overhang | 460mm | Brake/service brake | Power brake-pedal |
| Rear overhang | 410mm | Parking brake | Machenical-manual |
| Minimum ground clearance | 110mm | Battery voltage/capacity | 12V/80Ah |
| No-load maximum lifting height | 3000mm | Engine model | XinChai| C490BPG |
| Free lift height | 150mm | Engine fuel tank capacity | 50L |
| Minimum turning radius (outer side) | 2300mm | Transmission box | Hydraulic shift |
| Gantry inclination | 6°/12° | Number of levers | 1 |
Product highlights

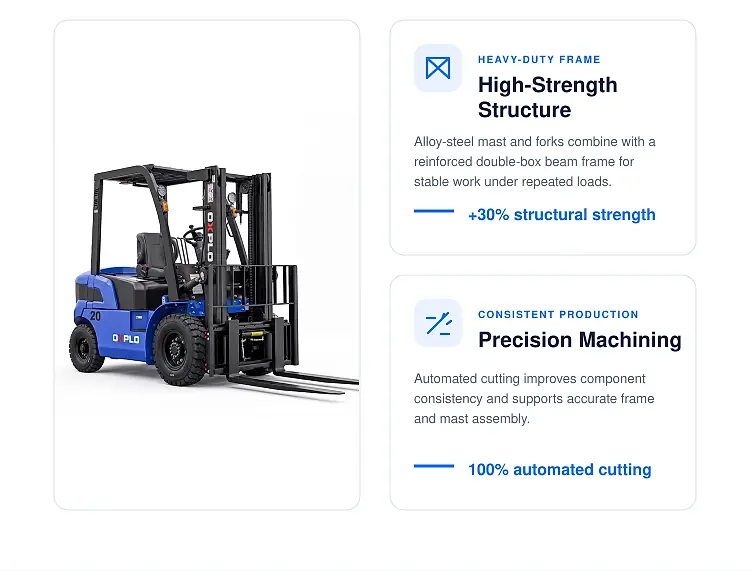

1.Materials and Craftsmanship: The critical components of our heavy-duty diesel forklifts—such as the mast and forks—are manufactured from high-strength alloy steel, ensuring exceptional load-bearing capacity and impact resistance. The frame features a double-box beam structure, which enhances torsional and bending strength by 30%, thereby guaranteeing stable operation even under extreme conditions.
2.Precision machining utilizes a 100% automated cutting production line to ensure consistent accuracy.

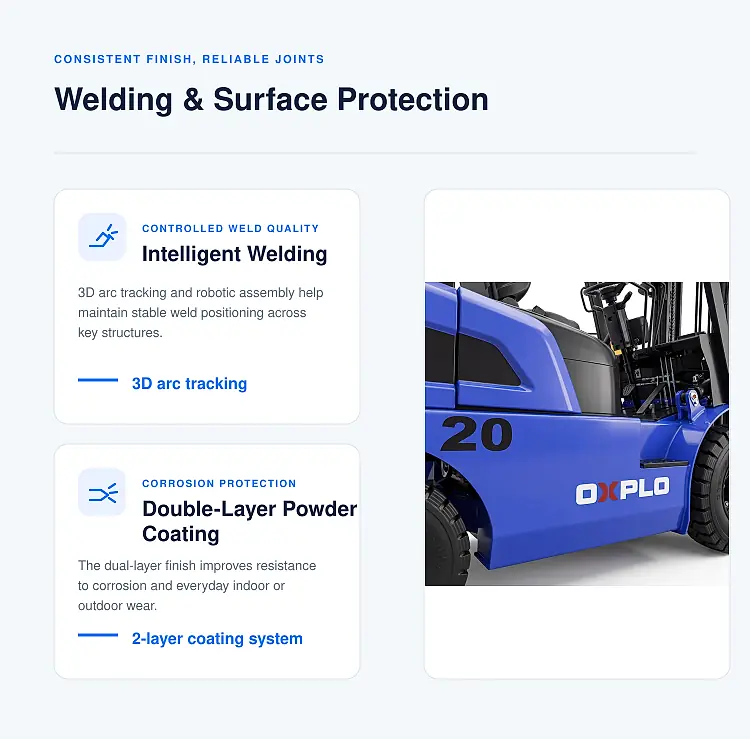

3.Utilize 3D arc tracking and robotic assembly for intelligent welding to achieve reliable joints.
4.The eco-friendly coating features a double-layer powder-coated finish, offering exceptional corrosion resistance.

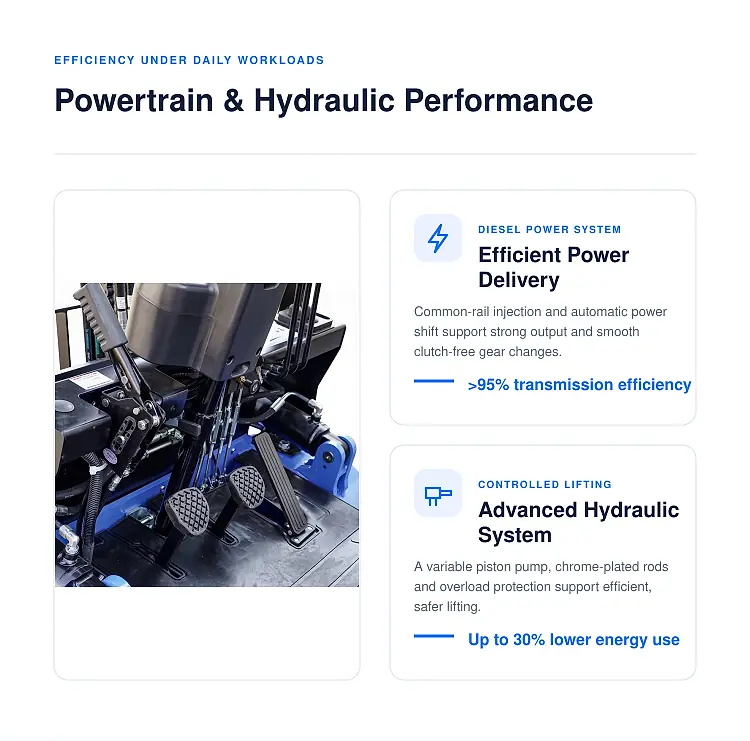

5.The turbocharged engine employs high-pressure common rail injection technology, delivering robust power and exceptional fuel efficiency. The automatic power-shift transmission (motor-driven) achieves an efficiency exceeding 95%, enabling smooth gear shifting without the need for a clutch.
6.The hydraulic system utilizes a variable-displacement piston pump, reducing energy consumption by 30%. Equipped with hard chrome-plated pistons and an overload protection device, it ensures safe lifting operations.

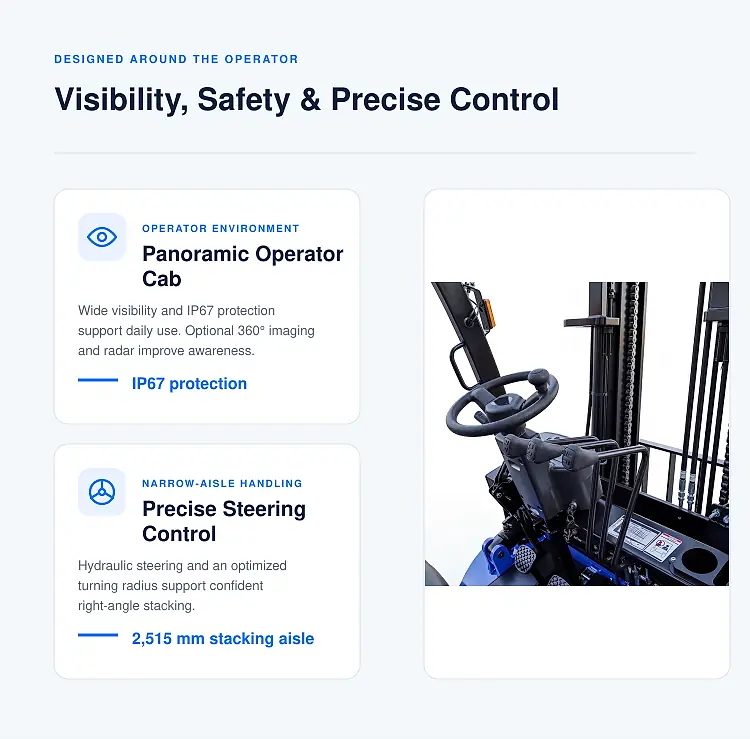

7.The cab offers a panoramic field of view, an IP67 waterproof rating, and an optional 360-degree panoramic camera system—along with radar for operator safety.
8.Precise Control: The hydraulic power steering system and optimized turning radius enable right-angle stacking—even within a narrow aisle of just 2,515 mm.

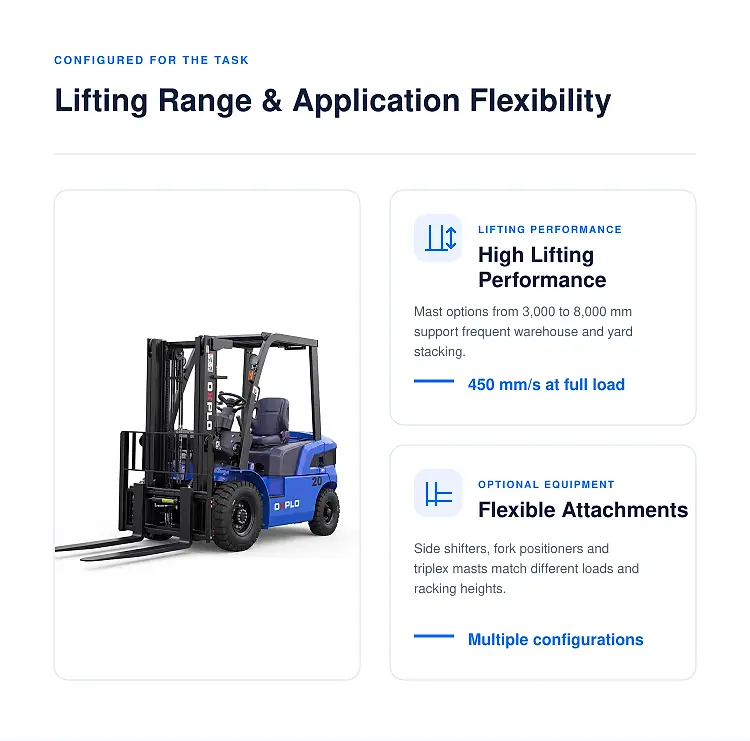

9.Lifting Capacity: 3,000–8,000 mm lifting height; full-load lifting speed up to 450 mm/s; no-load lifting speed up to 500 mm/s.

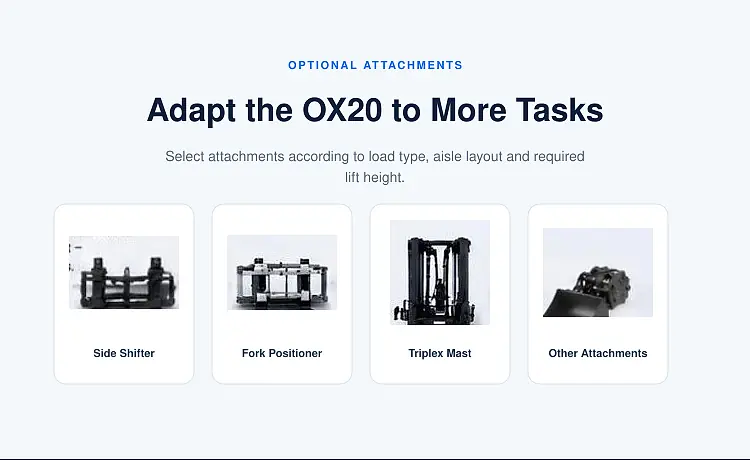

10.Optional attachments—including side shifters, fork positioners, and three-stage masts—are available to suit a wide range of applications.
