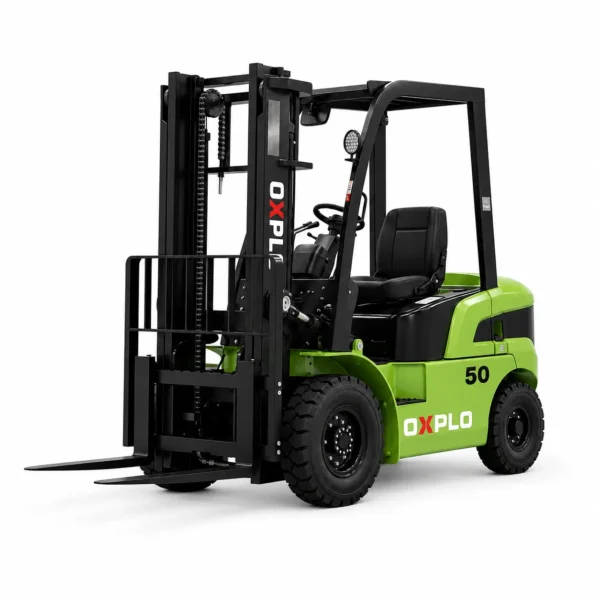

OXPLO CPD50 Electric Forklift

5,000kg Lithium Electric Forklift for Heavy-Duty Industrial Material Handling

The OXPLO CPD50 is a 5 ton electric forklift designed for demanding pallet transport, stacking, loading and industrial material-handling applications.

With a rated lifting capacity of 5,000kg at a 500mm load center, an 80V / 410Ah lithium-ion battery system and a reinforced heavy-duty chassis, the CPD50 provides the lifting capacity required for heavier industrial loads while retaining the clean and quiet operating characteristics of an electric forklift.

It is suitable for manufacturing facilities, logistics centers, building-material warehouses, production plants and paved industrial yards where higher load capacity and reliable daily handling performance are required.

Technical Specifications

Category	Parameter	CPD50 Specification
Capacity	Rated lifting capacity	5,000kg
	Load center distance	500mm
Dimensions	Overall length with fork	4,468mm
	Overall length without fork	3,248mm
	Overall width	1,480mm
	Overhead guard height	2,265mm
	Wheelbase	2,100mm
	Minimum ground clearance at mast	175mm
Mast & Fork	Free lifting height	150mm
	Mast tilt angle, front / rear	6° / 12°
	Fork size (L × W × T)	1,220 × 155 × 55mm
Performance	Maximum travel speed, full / no load	18 / 19km/h
	Maximum lifting speed, full / no load	360 / 370mm/s
	Maximum gradeability, full / no load	19% / 20%
Maneuverability	Minimum outer turning radius	2,930mm
	Minimum right-angle stacking aisle width	3,000mm
Tires & Weight	Front / rear tire size	300-15 / 7.00-12
	Total forklift weight	6,160kg
Battery	Battery voltage / capacity	80V / 410Ah lithium-ion

Core Performance Features

80V / 410Ah Lithium Battery System

The OXPLO CPD50 is equipped with an 80V / 410Ah lithium-ion battery system, providing stable electrical power for lifting, travel and heavy-duty industrial material handling.

The intelligent Battery Management System monitors important battery conditions, including voltage, temperature and state of charge. It helps protect the battery against overcharging, over-discharging and overheating during operation.

Charging arrangements can be selected according to the customer’s shift schedule and operating requirements.

Actual operating and charging times vary depending on:

• Load weight
• Lifting frequency
• Travel distance
• Gradients
• Working temperature
• Operator behaviour
• Charger configuration

For extended daily operating hours or multi-shift applications, OXPLO recommends matching the battery and charging arrangement to the customer’s actual duty cycle.

Clean and Quiet Electric Operation

The CPD50 electric powertrain produces no tailpipe emissions during operation and operates at a lower noise level than a comparable internal-combustion forklift.

This makes the CPD50 suitable for applications such as:

• Manufacturing facilities
• Logistics and distribution centers
• Industrial warehouses
• Building-material warehouses
• Production and assembly plants
• Heavy pallet handling
• Truck loading and unloading
• Other industrial environments where lower exhaust emissions and reduced operating noise are preferred

For cold-storage or low-temperature applications, suitable battery, hydraulic oil and electrical configurations should be confirmed according to the actual operating temperature.

5,000kg Heavy-Duty Lifting Capacity

The OXPLO CPD50 has a rated lifting capacity of 5,000kg at a 500mm load center, making it suitable for heavier industrial loads beyond the typical capacity range of standard warehouse forklifts.

Typical applications may include:

• Heavy pallet transport
• Machinery and component handling
• Building-material handling
• Production-line material supply
• Truck loading and unloading
• Industrial storage and stacking
• General heavy-duty logistics

Maximum lifting speed is:

• 360mm/s with a full load
• 370mm/s without a load

The rated 5,000kg capacity applies under the specified load-center and mast conditions.

If the load center exceeds 500mm, a higher mast is installed or a heavy attachment is used, the available residual lifting capacity may be reduced.

For loads approaching the rated capacity, OXPLO recommends confirming the actual load dimensions, center of gravity, lifting height and attachment configuration before ordering.

Maneuverability for Heavy Industrial Operations

As a 5 ton electric forklift, the CPD50 requires more operating space than smaller 2–3 ton warehouse models.

Its chassis and steering geometry are designed to provide controlled maneuverability while handling heavier loads.

Key dimensions include:

• Minimum outer turning radius: 2,930mm
• Minimum right-angle stacking aisle width: 3,000mm
• Overall width: 1,480mm
• Wheelbase: 2,100mm

These dimensions make the CPD50 suitable for appropriately sized warehouse aisles, production areas, loading zones and industrial facilities.

Actual working-space requirements depend on pallet dimensions, fork length, mast configuration, attachments and required safety clearance.

Customers should confirm their available aisle width and operating area before selecting the final forklift configuration.

Stable Travel and Ramp Performance

The CPD50 provides maximum travel speeds of:

• 18km/h with a full load
• 19km/h without a load

Under specified test conditions, maximum gradeability is:

• 19% with a full load
• 20% without a load

This provides practical ramp performance for suitable warehouse access ramps and paved industrial yards.

The CPD50 is primarily intended for level or paved operating surfaces.

Muddy ground, deep gravel, severe potholes and highly uneven agricultural or construction sites generally require a dedicated rough-terrain forklift.

Operator Comfort and Controlled Handling

The CPD50 operator area is designed to support controlled daily operation when transporting and positioning heavier industrial loads.

Clearly arranged controls, good mast visibility and responsive steering help the operator position pallets and materials accurately.

A digital instrument display provides essential operating information and allows the operator to monitor forklift and battery conditions during operation.

Depending on the selected configuration, available safety and operator-assistance equipment may include:

• Warning lights
• Reversing alarms
• Cameras
• Additional work lights
• Operator-protection equipment
• Other safety accessories

Available equipment should be confirmed according to the selected configuration and working environment.

Simplified Electric Forklift Maintenance

Compared with an internal-combustion forklift, the CPD50 lithium electric forklift eliminates a number of routine engine-related maintenance requirements.

There is no diesel engine requiring routine service items such as:

• Engine oil changes
• Fuel-filter replacement
• Engine belt servicing
• Other combustion-engine maintenance

The accessible electrical system allows technicians to inspect the lithium battery, controller and electrical connections more conveniently.

The Battery Management System also assists with monitoring battery operating conditions and identifying abnormal battery conditions.

However, electric does not mean maintenance-free.

Regular inspection is still required for:

• Lithium battery and charging system
• Tires and wheel components
• Brakes and steering system
• Hydraulic oil and hoses
• Mast rollers
• Lifting chains
• Forks and attachments
• Electrical connections

The simplified electric powertrain can reduce routine engine-related maintenance compared with an internal-combustion forklift while supporting reliable daily operation.

Durable Heavy-Duty Industrial Construction

The OXPLO CPD50 uses a reinforced mast, heavy-duty chassis structure and pneumatic tires to support frequent handling of heavier industrial loads.

Key structural specifications include:

• Total forklift weight: 6,160kg
• Front tire size: 300-15
• Rear tire size: 7.00-12
• Fork dimensions: 1,220 × 155 × 55mm
• Mast tilt angle: 6° forward / 12° backward
• Minimum ground clearance at mast: 175mm

The wider chassis, longer wheelbase and reinforced lifting structure are designed to support stable handling of heavier pallets and industrial materials.

For operations involving loose soil, deep gravel, mud or severely uneven terrain, a dedicated rough-terrain forklift should be considered instead.

Mast Configurations and Forklift Attachments

The CPD50 can be configured according to the customer’s load type, required lifting height and material-handling application.

Available configurations may include:

• Different mast heights
• Two-stage or three-stage mast
• Side shifter
• Fork positioner
• Extended forks
• Additional hydraulic functions
• Warning and safety equipment
• Alternative tire configurations

When handling loads approaching 5,000kg, forklift selection should consider more than maximum load weight.

Important factors include:

• Actual load weight
• Load dimensions
• Load center
• Required lifting height
• Mast configuration
• Attachment type
• Attachment weight
• Required residual lifting capacity

Attachments and extended load centers can reduce available lifting capacity, particularly when loads are raised to greater heights.

OXPLO recommends confirming the complete working conditions before selecting the final CPD50 configuration.

OXPLO Forklift Selection and Technical Support

OXPLO supports international customers with forklift selection, configuration guidance, technical documentation and spare-parts support.

To determine whether the CPD50 is suitable for an application, customers can provide:

• Maximum load weight
• Required lifting height
• Pallet or load dimensions
• Actual load center
• Minimum aisle width
• Indoor or outdoor application
• Daily operating hours
• Working surface
• Required attachments
• Destination country or delivery location

Based on these working conditions, OXPLO can help recommend a suitable forklift, battery, mast and attachment configuration.

Frequently Asked Questions

Q1: What is the rated lifting capacity of the OXPLO CPD50?

The CPD50 has a rated lifting capacity of 5,000kg at a 500mm load center.

Actual available lifting capacity may change when higher masts, attachments or loads with extended load centers are used.

For heavy, long or unusually shaped loads, customers should provide the complete load dimensions, center of gravity and required lifting height before finalizing the configuration.

Q2: What battery does the CPD50 use?

The CPD50 is equipped with an 80V / 410Ah lithium-ion battery system.

The Battery Management System monitors key operating conditions such as voltage, temperature and state of charge.

Actual operating time depends on the forklift’s workload, lifting frequency, travel distance, gradients, working temperature and charging arrangement.

Q3: Can the CPD50 support extended daily operating hours?

The CPD50 can support longer operating schedules when the battery and charging arrangement are correctly matched to the required duty cycle.

For multi-shift operations, customers should provide their daily operating schedule, average load and available charging periods so that an appropriate configuration can be evaluated.

Q4: Can the CPD50 electric forklift be used outdoors?

Yes. The CPD50 can be used on suitable level and paved outdoor surfaces when weather and operating conditions permit.

It is not designed as a dedicated off-road forklift.

For mud, deep gravel, severe potholes or highly uneven agricultural and construction surfaces, a rough-terrain forklift is generally more suitable.

Q5: Is a 5 ton electric forklift suitable for my load?

A 5 ton electric forklift should not be selected based only on maximum load weight.

Customers should also consider:

• Load dimensions
• Load center
• Required lifting height
• Attachment weight
• Mast configuration
• Residual lifting capacity

The CPD50’s 5,000kg rating applies at the specified 500mm load center under the relevant rated conditions.

Longer loads, higher lifting heights and heavy attachments can reduce the forklift’s available lifting capacity.

Q6: How much aisle space does the CPD50 require?

The CPD50 has a minimum outer turning radius of 2,930mm and a minimum right-angle stacking aisle width of 3,000mm.

Actual space requirements depend on pallet dimensions, fork length, mast configuration, attachments and required safety clearance.

Because the CPD50 is a heavy-duty 5 ton forklift, customers should confirm their warehouse layout carefully before selecting the machine.

Q7: What is the CPD50’s gradeability?

Under specified test conditions, maximum gradeability is:

• 19% with a full load
• 20% without a load

Actual ramp performance can vary according to load condition, surface condition and operating environment.

Q8: Does the CPD50 require regular maintenance?

Yes.

Although its electric powertrain eliminates many diesel-engine maintenance items, regular inspection is still required for the lithium battery, charger, brakes, steering system, tires, hydraulic system, mast, lifting chains, forks and electrical connections.

Q9: What information should I provide before ordering a CPD50?

For a more accurate recommendation, provide:

• Maximum load weight
• Load dimensions
• Load center
• Required lifting height
• Minimum aisle width
• Daily operating hours
• Working surface
• Required attachments
• Delivery destination

OXPLO can then help determine an appropriate CPD50 battery, mast and attachment configuration for the application.

Request a CPD50 Forklift Recommendation

Looking for a 5 ton lithium electric forklift for manufacturing, logistics, warehousing or heavy industrial material handling?

Send OXPLO your maximum load weight, load dimensions, lifting height, aisle width, daily operating hours, working surface and required attachments.

OXPLO will help determine whether the CPD50 electric forklift is suitable for your application and recommend the corresponding battery, mast and attachment configuration.
