OX30 – Diesel Forklift

Rated lifting load 3000Kg
Mast Type/Lift Height 2-Stage/4m
Contact Form - Product

Product Details

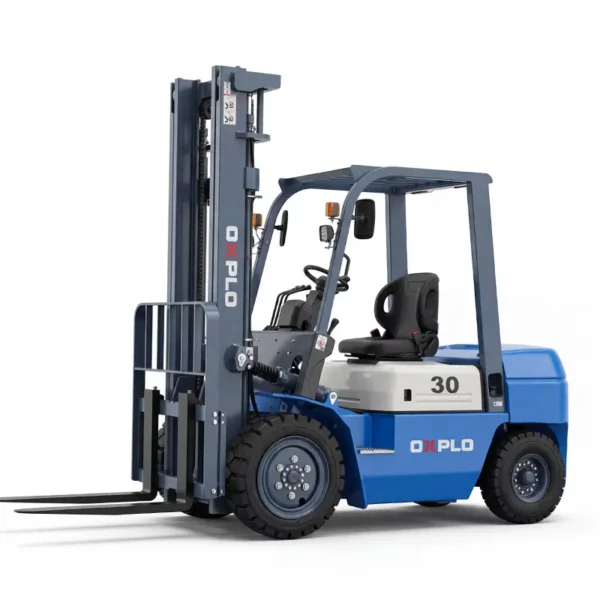

OX30 3 Ton Diesel Forklift

Reliable Diesel Power for Demanding Material Handling

The OXPLO OX30 is a 3-ton diesel forklift designed for reliable lifting, loading, and short-distance material transport in industrial and outdoor working environments. With a robust counterbalance structure, hydraulic shift transmission, and practical operator controls, it is well suited to logistics yards, construction material suppliers, manufacturing facilities, and general cargo handling operations.

Built for businesses that need dependable equipment throughout the working day, the OX30 combines straightforward operation with flexible configuration options. Whether moving palletized goods, loading delivery trucks, or supporting daily warehouse dispatch, OXPLO provides a practical material handling solution for commercial buyers and equipment distributors.

Moldel OX30
Power Disel No-load maximum lifting speed 505mm/s
Rated lifting load 3000Kg Full-load maximum lifting speed 485mm/s
Load center distance 500mm No-load Maximum driving speed 20Km/h
Driving mode Seat driving Full-load Maximum driving speed 18Km/h
With fork 3950mm Full-load maximum gradeability 20%
Without fork 2690mm Service weight- no load 4375Kg
Width 1210mm Tire no. (F/R) 2/2
Overall lowered height 2620mm Tire type (F/R) Pneumatic Tyre
Overhead guard height 2100mm Tire size (F) 28×9-15
Wheelbase 1700mm Tire size (R) 6.50-10
Front overhang 479mm Brake/service brake Power brake-pedal
Rear overhang 520mm Parking brake Machenical-manual
Minimum ground clearance 135mm Battery voltage/capacity 12V/80Ah
No-load maximum lifting height 4000mm Engine model XinChai|C490BPG
Free lift height 160mm Engine fuel tank capacity 60L
Minimum turning radius (outer side) 2240mm Transmission box Hydraulic shift
Gantry inclination 6°/6° Number of levers 1

OX30 3 Ton Diesel Forklift

Reliable Diesel Power for Demanding Material Handling

The OXPLO OX30 is a 3-ton diesel forklift designed for reliable lifting, loading, and short-distance material transport in industrial and outdoor working environments. With a robust counterbalance structure, hydraulic shift transmission, and practical operator controls, it is well suited to logistics yards, construction material suppliers, manufacturing facilities, and general cargo handling operations.

Built for businesses that need dependable equipment throughout the working day, the OX30 combines straightforward operation with flexible configuration options. Whether moving palletized goods, loading delivery trucks, or supporting daily warehouse dispatch, OXPLO provides a practical material handling solution for commercial buyers and equipment distributors.

II. Dependable Diesel Power for Outdoor Operations

A Practical Powertrain for Daily Work

Diesel forklifts remain a practical choice for businesses operating in outdoor yards, loading areas, and industrial facilities with suitable ventilation.

The OXPLO OX30 uses a XinChai diesel engine paired with a hydraulic shift transmission. This configuration is intended for routine material handling operations where operators frequently travel between loading points, change direction, and lift or lower palletized goods.

Supporting Continuous Material Movement

A forklift may perform hundreds of short handling movements during a working day. Smooth driving control, predictable response, and straightforward refueling procedures can help businesses organize these repetitive workflows.

The OX30 is suitable for operations involving truck loading, pallet transfer, and movement between outdoor storage zones.

Maintenance Planning Matters

For commercial buyers, long-term usability also depends on routine maintenance and access to appropriate service parts.

Before purchasing, customers should confirm the recommended maintenance schedule, engine service requirements, and spare parts arrangements with OXPLO. Diesel-powered equipment must also be operated in accordance with applicable ventilation and safety requirements.

III. Practical Dimensions for Better Site Planning

Choosing a Forklift That Fits Your Working Space

A forklift must fit the actual working environment, not simply meet the required lifting capacity.

For buyers operating in construction yards, logistics facilities, and material storage areas, machine dimensions influence aisle planning, turning movements, doorway access, and loading efficiency.

The OXPLO OX30 offers a practical counterbalance forklift layout suitable for a range of outdoor industrial handling applications.

Why Turning Space and Clearance Matter

Before selecting a forklift, businesses should review the width of their working routes, the available turning area, and the condition of the ground surface.

A machine may fit through an entrance but still require additional space to turn while carrying a pallet. Fork length, load dimensions, and mast configuration can also affect the space needed for safe operation.

Plan Around Your Actual Site

OXPLO recommends checking aisle widths, doorway heights, loading bay dimensions, and surface conditions before confirming an order.

Customers can share their site measurements and typical pallet dimensions with the OXPLO team to help identify an appropriate OX30 configuration.

This preparation reduces the risk of selecting equipment that does not suit the intended working environment.

IV. Reliable Lifting Performance for Daily Productivity

Supporting Efficient Loading and Transport

In a busy material handling operation, productivity depends on how efficiently a forklift completes repeated lifting, traveling, positioning, and unloading tasks.

The OXPLO OX30 is designed for businesses that regularly move palletized materials between storage locations, production areas, and delivery vehicles.

Its diesel powertrain and hydraulic lifting system provide a practical combination for everyday cargo handling.

Understanding Real Operating Capacity

The weight of a load is only one factor in determining whether a forklift is suitable for a particular task.

Load center distance, lifting height, mast selection, and attachments can all influence the allowable lifting capacity.

For example, moving a compact pallet of construction materials may involve different handling requirements from transporting a long or unevenly distributed load.

Buyers should confirm the appropriate load chart for their intended configuration rather than relying on rated capacity alone.

Productivity Starts With the Right Setup

Efficient operations also depend on suitable pallet dimensions, clear travel routes, operator training, and appropriate loading procedures.

OXPLO helps customers review their handling requirements so that forklift specifications can be matched to the intended workload, rather than focusing on individual performance figures alone.

V. Versatile Applications Across Different Industries

Logistics Yards and Truck Loading

Logistics businesses need forklifts that can move palletized cargo efficiently between receiving areas, temporary storage zones, and delivery vehicles.

The OXPLO OX30 supports everyday loading and unloading activities in outdoor logistics yards and properly ventilated industrial handling areas.

Its counterbalance design makes it a practical option for moving conventional palletized goods along established working routes.

Building Materials and Timber Handling

Construction supply businesses often handle bagged cement, bricks, packaged blocks, and other palletized building materials.

The OX30 can be configured for suitable loads within its approved capacity. For timber products and longer materials, buyers should confirm the required fork length, load center, and any special handling attachments.

Agricultural Supply and Factory Receiving

Agricultural businesses may need to transport packaged feed, fertilizer, and farm supplies between storage buildings and dispatch areas.

Manufacturing facilities also rely on forklifts to move incoming materials, packaged components, and finished products.

For these applications, OXPLO recommends selecting a forklift configuration based on the typical load, working surface, travel distance, and daily operating schedule.

Match the Machine to the Environment

The OX30 is particularly suited to outdoor industrial handling. For enclosed or poorly ventilated areas, customers should evaluate ventilation requirements and consider whether an electric forklift would be more appropriate.

VI. Flexible Forklift Configurations for Different Jobs

Select the Right Mast and Fork Arrangement

Not every material handling business works with the same pallet dimensions or stacking requirements.

Some operations need a standard mast for routine loading tasks, while others require additional lifting height for higher storage positions.

OXPLO offers configuration discussions covering two-stage and three-stage mast options, with final availability and specifications subject to confirmation.

Fork length should also be selected according to pallet size, load distribution, and the intended working application.

Improve Load Positioning With Suitable Attachments

For businesses that frequently align pallets inside trucks or storage positions, a side shifter may help reduce the need for repeated forklift repositioning.

A fork positioner can also be useful when operators handle loads with different fork-spacing requirements.

Because attachments can change the effective lifting capacity and load center, compatibility and residual capacity must be confirmed before purchase.

Match Tyres and Safety Equipment to Your Site

Tyre selection should reflect the surface conditions, travel routes, and daily working environment.

Additional working lights, warning devices, or other safety equipment may be available depending on the chosen configuration.

OXPLO encourages buyers to explain their operating conditions before finalizing a quotation, helping ensure that the selected accessories address genuine handling needs rather than adding unnecessary cost.

VII. Operator-Focused Details for Everyday Use

Accessible Controls for Routine Handling

Forklift operators spend much of their working time steering, controlling travel, adjusting forks, and positioning loads.

The OXPLO OX30 features a conventional seated operator station with accessible steering and control arrangements intended for familiar day-to-day forklift operation.

The layout supports regular loading, reversing, and positioning activities in industrial material handling environments.

Practical Seating and Driving Position

An appropriate driving position matters when operators perform repetitive handling tasks over extended periods.

The OX30’s operator area combines a seated driving arrangement with visible controls and a practical overhead guard structure.

Before operation, the seat, restraint system, mirrors, and other safety-related equipment should be checked according to the machine’s operating instructions.

Designed With Daily Maintenance in Mind

For business owners and fleet managers, simple routine checks are an important part of equipment management.

Operators should inspect tyres, forks, mast components, hydraulic connections, and fluid levels as required by the maintenance schedule.

OXPLO recommends following the supplied operating and service documentation to maintain reliable performance and identify potential issues before they interrupt daily work.

VIII. Get the Right OX30 Configuration for Your Business

Tell Us About Your Material Handling Requirements

Choosing the right forklift starts with understanding how and where it will be used.

Whether you operate a logistics yard, construction supply business, agricultural distribution center, or manufacturing facility, the OXPLO team can help review your handling requirements before preparing a quotation.

To recommend a suitable OX30 configuration, please share the following information:

  • Maximum Load: Typical load weight, pallet dimensions, and load center requirements.
  • Working Surface: Concrete, asphalt, gravel, or other ground conditions.
  • Attachments: Requirements for a side shifter, fork positioner, longer forks, or other equipment.
  • Required Lift Height: Maximum stacking height and any overhead clearance restrictions.
  • Daily Working Hours: Estimated operating time and frequency of loading tasks.
  • Delivery Country: Destination country and any relevant import or shipping requirements.

Request a Quotation From OXPLO

With this information, OXPLO can discuss an appropriate mast, fork arrangement, tyre configuration, and available accessories based on your intended application.

Our team can also provide product information and discuss applicable delivery arrangements, warranty terms, and spare parts requirements.

Contact OXPLO today to request a quotation for the OX30 diesel forklift and find a practical material handling solution for your business.
