OX30L – Diesel Forklift

Rated lifting load: 3000Kg
Mast Type/Lift Height: 2-Stage/4m
Contact Form - Product

Product Details

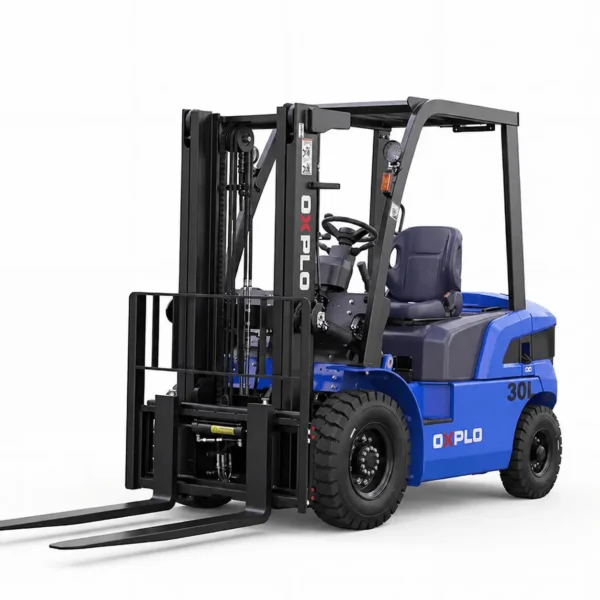

OX30L 3 Ton Diesel Forklift

Reliable Diesel Power for Everyday Material Handling

The OXPLO OX30L is a diesel counterbalance forklift designed for dependable lifting, loading, unloading, and short-distance material transport. Built for practical daily operations, it is well suited to outdoor yards, logistics facilities, construction supply centers, and industrial loading areas.

With a durable counterbalance design, hydraulic shift transmission, and flexible configuration options, the OX30L supports repetitive material handling tasks across different working environments.

Whether moving palletized goods between storage areas or supporting daily truck loading operations, OXPLO helps businesses choose a forklift configuration that matches their actual workload and site conditions.

Moldel OX30L
Power Disel No-load maximum lifting speed 505mm/s
Rated lifting load 3000Kg Full-load maximum lifting speed 485mm/s
Load center distance 500mm No-load Maximum driving speed 20Km/h
Driving mode Seat driving Full-load Maximum driving speed 18Km/h
With fork 3950mm Full-load maximum gradeability 20%
Without fork 2690mm Service weight- no load 4375Kg
Width 1210mm Tire no. (F/R) 2/2
Overall lowered height 2620mm Tire type (F/R) Pneumatic Tyre
Overhead guard height 2100mm Tire size (F) 28×9-15
Wheelbase 1700mm Tire size (R) 6.50-10
Front overhang 479mm Brake/service brake Power brake-pedal
Rear overhang 520mm Parking brake Machenical-manual
Minimum ground clearance 135mm Battery voltage/capacity 12V/80Ah
No-load maximum lifting height 4000mm Engine model XinChai|C490BPG
Free lift height 160mm Engine fuel tank capacity 60L
Minimum turning radius (outer side) 2240mm Transmission box Hydraulic shift
Gantry inclination 6°/6° Number of levers 1

I. Engineered for Reliable Material Handling

Built Around Practical Daily Operations

Material handling businesses need equipment that can perform repetitive lifting and transport tasks without unnecessary operational complexity. From unloading incoming deliveries to moving finished goods across outdoor storage areas, forklifts must support consistent handling throughout the working day.

The OXPLO OX30L combines a practical counterbalance structure with pneumatic tyres and a seated operator arrangement, making it suitable for planned material handling routes in industrial yards and loading facilities.

Match the Forklift to Your Actual Loads

Rated lifting capacity is only one consideration when selecting a forklift. Pallet dimensions, load center distance, stacking height, and load stability all influence the correct equipment configuration.

For example, a long timber bundle and a compact pallet of building materials may have similar weights but different load centers. OXPLO recommends confirming these details against the applicable load chart before selecting the mast, forks, or attachments.

By considering actual cargo characteristics rather than capacity alone, businesses can select a more suitable handling solution for their operations.

II. Diesel Power for Demanding Workdays

Reliable Performance for Repeated Loading Cycles

Outdoor material handling often involves frequent starts, short-distance travel, lifting, reversing, and positioning loads. A suitable powertrain must support these repeated operations while remaining practical for operators and maintenance teams.

The OXPLO OX30L features a diesel engine paired with a hydraulic shift transmission, providing a practical driving arrangement for loading bays, logistics yards, and industrial material transfer.

Plan Operating Costs Around Real Working Conditions

Fuel consumption depends on several factors, including cargo weight, travel distance, idling time, surface conditions, and operator habits.

For buyers comparing forklift running costs, OXPLO recommends estimating daily operating hours and typical handling cycles rather than relying only on fuel tank capacity.

Diesel forklifts are particularly suited to outdoor applications. When operating inside industrial buildings, adequate ventilation and applicable exhaust-safety requirements must also be considered.

With the right maintenance schedule and suitable working conditions, the OX30L can support daily loading and material movement requirements.

III. Dimensions That Fit Your Working Environment

Plan Access Routes Before Your Forklift Arrives

A forklift may fit through a warehouse entrance but still require additional space to turn, reverse, or position pallets safely. For businesses working around loading bays, storage aisles, and narrow outdoor routes, checking the operating space before purchasing is essential.

The OXPLO OX30L is designed for practical material handling, with published dimensions that help buyers evaluate site access and maneuverability.

Consider More Than the Forklift Width

Before selecting a forklift, buyers should examine the narrowest access points, gate openings, overhead clearance, turning areas, and available stacking space.

Particular attention should be given to the lowered mast height, overall length with forks, and the space required when carrying long or oversized loads. The machine’s turning radius alone does not determine its complete stacking aisle requirement.

If your facility has restricted access or unusual handling routes, OXPLO can review your site measurements and discuss an appropriate mast and fork configuration.

This preparation helps reduce the risk of selecting equipment that does not fit the intended working environment.

IV. Built for Productive Handling Operations

Improve Efficiency Across the Complete Work Cycle

Forklift productivity depends on more than maximum travel speed. In daily material handling, operators must approach pallets, align forks, lift loads, travel to the designated area, and position goods accurately before repeating the cycle.

The OXPLO OX30L provides travel and lifting performance suitable for routine material movement across industrial yards and loading areas.

Evaluate Performance Under Real Conditions

A logistics facility handling standardized pallets may prioritize short travel cycles and accurate positioning. A construction materials supplier, however, may need to consider heavier cargo, irregular load dimensions, and longer outdoor transport routes.

Ramp conditions, surface quality, operator experience, and load stability can also influence achievable productivity.

OXPLO recommends evaluating the complete handling workflow when choosing a forklift. Understanding the distance between pickup and delivery points, the number of daily loads, and the required stacking height helps buyers select equipment suited to their operating schedule.

Published performance figures should be used as planning references, with safe operation always taking priority over maximum speed.

V. Versatile Applications Across Different Industries

Practical Solutions for Outdoor Material Handling

Different industries handle different types of cargo, but many share similar requirements: reliable pallet movement, practical loading equipment, and efficient transfer between storage areas and transport vehicles.

The OXPLO OX30L is suitable for a range of outdoor and appropriately ventilated industrial handling environments.

Logistics Yards and Truck Loading

Logistics operators often handle repeated loading and unloading tasks involving palletized cartons, packaged goods, and warehouse supplies.

The OX30L can support material transfer between delivery vehicles, receiving zones, and designated storage areas.

Construction and Building Materials

Construction supply businesses frequently handle cement bags, packaged blocks, timber, and other palletized materials.

For these applications, buyers should consider cargo stability, load center position, and ground conditions when selecting forks and attachments.

Agricultural and Industrial Facilities

Agricultural yards may require forklifts for palletized animal feed, fertilizer, and farm supplies. Manufacturing facilities may need equipment to move raw materials, packaged components, and finished goods around loading areas.

OXPLO can help buyers evaluate the appropriate configuration based on cargo type, handling frequency, and working environment.

For deep mud, severely uneven terrain, or challenging off-road conditions, a dedicated rough-terrain forklift may be more appropriate than a standard counterbalance model.

VI. Flexible Configurations for Your Handling Needs

Choose Equipment Based on Your Cargo and Workflow

Different handling operations require different forklift configurations. While standard forks may be sufficient for regular pallet movement, certain applications benefit from additional mast options or specialized attachments.

The OXPLO OX30L offers configuration possibilities that can be discussed according to cargo dimensions, lifting requirements, working space, and operating conditions.

Mast and Attachment Options

A three-stage mast may be useful when greater lifting height is required while maintaining suitable lowered-mast clearance. Side shifters can assist with lateral pallet alignment, reducing the need to reposition the entire forklift during placement.

Fork positioners may provide additional convenience when handling pallets of different widths. Alternative fork lengths and other attachments can also be considered for specific material handling requirements.

Confirm Compatibility Before Ordering

Attachments can affect residual lifting capacity, load center distance, forward visibility, and overall operating dimensions.

OXPLO recommends sharing cargo specifications and attachment requirements before quotation so that the selected configuration can be reviewed for compatibility.

Optional equipment, availability, and final specifications should always be confirmed for the ordered machine.

VII. Practical Details for Everyday Operation

Designed Around the Operator’s Daily Tasks

Forklift operators spend much of their working day entering the vehicle, steering through handling routes, adjusting the mast, and positioning loads.

The OXPLO OX30L uses a seated driving arrangement with accessible steering and operating controls to support routine loading and material movement.

Its overhead guard, mast structure, pneumatic tyres, and counterbalance body are important components to examine when evaluating the machine for a particular application.

Consider Inspection and Maintenance Access

For businesses operating forklifts regularly, routine maintenance is an important part of equipment ownership.

Operators should inspect tyres, forks, mast components, hydraulic connections, and visible safety-related parts according to the maintenance instructions.

Buyers can also request updated production photographs, detailed component views, or a machine walkaround video to better understand the supplied equipment.

OXPLO recommends confirming the final machine configuration, maintenance requirements, and spare parts arrangements before shipment, helping customers prepare for long-term equipment operation.

VIII. Get the Right OX30L Configuration for Your Business

Tell OXPLO What You Need to Handle

Choosing the right forklift starts with understanding your cargo, working conditions, and operational requirements.

Before requesting a quotation, consider the maximum load weight, typical pallet dimensions, required lifting height, site conditions, expected daily operating hours, and any additional attachment requirements.

These details help OXPLO review your application and recommend a suitable forklift configuration rather than providing a quotation based on model name alone.

Request a Configuration-Specific Quotation

Whether you are purchasing equipment for an existing facility, expanding a material handling fleet, or sourcing forklifts for distribution, OXPLO can discuss available configurations and export arrangements.

Please include your destination country so that shipping options, delivery terms, and relevant documentation requirements can be discussed.

Contact OXPLO to receive product information, configuration guidance, and a quotation tailored to your project.

Request Your OX30L Quote Today
