CPD25-Electric Forklift

Category	Parameter Item	Data / Specification (CPC/CPD25)
Capacity	Rated Lifting Load	2,500 kg (2.5 Tons)
	Load Center Distance	500 mm
Dimensions	Overall Length (With Fork)	3,615mm
	Overall Length (Without Fork)	2,545mm
	Overall Width	1,164mm
	Overhead Guard Height	2,150mm
	Wheelbase	1,600 mm
	Min. Ground Clearance (Mast)	115 mm
Mast & Fork	Free Lifting Height	115mm
	Mast Tilt Angle (Front/Rear)	6° / 12°
	Fork Size (LWT)	1,070 × 122 × 40 mm
Performance	Max. Travel Speed (Full/No-load)	17/ 19.5 km/h
	Max. Lifting Speed (Full/No-load)	570 / 600 mm/s
	Max. Gradeability (Full/No-load)	17% / 18%
Maneuverability	Min. Turning Radius (Outer)	2,240 mm
	Min. Right Angle Aisle Width	2,280 mm
Tires & Weight	Tire Size (Front / Rear)	7.00-12-12PR/ 6.00-9-10PR
	Total Forklift Weight	3,640 kg
	Battery Voltage/Capacity	76.8/280 Lithium

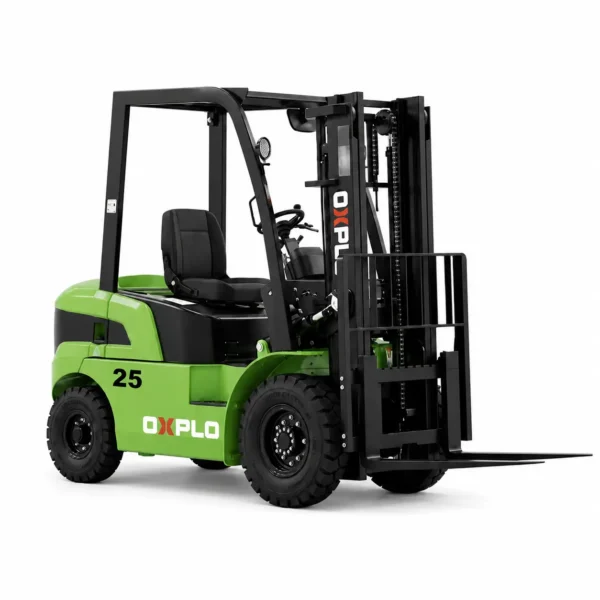

CPD25 Electric Forklift

The OXPLO CPD25 is a 2.5-ton electric counterbalance forklift designed for efficient material handling in warehouses, logistics centers, manufacturing plants, and other indoor industrial environments.

Powered by a 76.8V/280Ah lithium-ion battery, the CPD25 offers smooth acceleration, responsive lifting, quiet operation, and zero emissions. Its compact size, precise steering, and simplified maintenance make it an ideal alternative to traditional internal combustion forklifts.

---

DETAILS

Key Performance Features

76.8V / 280Ah Lithium Battery System

The OXPLO CPD25 is equipped with a 76.8V / 280Ah lithium-ion battery system, providing stable power for daily lifting, pallet transport and warehouse handling operations.

The intelligent Battery Management System monitors key battery conditions, including voltage, temperature and state of charge. It helps protect the battery against overcharging, over-discharging and overheating during operation.

Charging arrangements can be selected according to the customer’s shift schedule and operating requirements. Actual operating and charging times vary depending on load weight, lifting frequency, travel distance, working temperature and charger configuration.

Clean and Quiet Electric Operation

The CPD25 electric drive system produces no tailpipe emissions during operation and operates at a lower noise level than a comparable diesel forklift.

As a 2.5 ton electric forklift, the CPD25 is suitable for applications such as:

• Indoor warehouses
• Logistics and distribution centers
• Manufacturing facilities
• Food and beverage storage areas
• Retail and supermarket warehouses
• Production-line material handling
• Other noise-sensitive working environments

For cold-storage applications, suitable battery, hydraulic oil and electrical configurations should be confirmed according to the actual operating temperature and working conditions.

Maneuverability for Warehouse Operations

Higher lifting capacity does not necessarily require difficult maneuverability. The CPD25 combines a compact chassis, responsive steering and controlled low-speed handling for warehouse and industrial material-handling applications.

Key dimensions include:

• Minimum outer turning radius: 2,240mm
• Minimum right-angle stacking aisle width: 2,280mm
• Overall forklift width: 1,164mm

These dimensions help the forklift maneuver efficiently in warehouse aisles, loading areas and other space-limited working environments.

Actual aisle requirements should be confirmed according to pallet dimensions, fork length, mast configuration, attachments and required operating safety clearance.

2,500kg Lifting Capacity and Ramp Performance

The OXPLO CPD25 has a rated lifting capacity of 2,500kg at a 500mm load center, making it suitable for pallet transport, rack stacking, production-line supply and truck loading or unloading.

Under specified test conditions, maximum gradeability is:

• With full load: 17%
• Without load: 18%

This allows the forklift to operate on suitable warehouse ramps and paved industrial surfaces.

The CPD25 is primarily designed for level or paved operating environments. Muddy ground, deep gravel, severe potholes and highly uneven agricultural or construction sites generally require a dedicated rough-terrain forklift.

Operator Comfort and Safety

The operator area is designed to support comfortable and controlled daily operation. Clearly arranged controls, good mast visibility and responsive steering help the operator position and transport loads accurately.

A digital instrument display provides essential operating information and allows the operator to monitor forklift and battery conditions during operation.

Depending on the selected configuration, optional safety and operator-assistance equipment may include:

• Warning lights
• Reversing alarms
• Cameras
• Additional lighting
• Other operator-assistance features

Available equipment should be confirmed according to the selected forklift configuration.

Simplified Electric Forklift Maintenance

Compared with an internal-combustion forklift, the CPD25 lithium electric forklift eliminates a number of routine engine-related maintenance items, including engine oil changes, fuel-filter replacement and other combustion-engine service requirements.

The accessible battery compartment allows technicians to inspect the lithium battery, controller and electrical connections more conveniently. The Battery Management System also assists with battery-condition monitoring and preventive maintenance.

Regular inspection is still required for:

• Lithium battery and charging system
• Tires and wheel components
• Brakes and steering system
• Hydraulic oil and hoses
• Mast rollers and lifting chains
• Forks and attachments
• Electrical connections

The simplified electric powertrain can reduce routine maintenance requirements compared with conventional internal-combustion forklifts while supporting reliable daily operation.

Durable Industrial Construction

The OXPLO CPD25 uses a reinforced mast, stable chassis structure and heavy-duty pneumatic tires for regular industrial material-handling applications.

Key performance specifications include:

• Front tire size: 7.00-12-12PR
• Rear tire size: 6.00-9-10PR
• Maximum lifting speed with load: 570mm/s
• Maximum travel speed with load: 17km/h

The chassis and lifting system are designed to support frequent pallet handling, warehouse transport and industrial loading operations while maintaining stable performance throughout the working cycle.

Mast Configurations and Forklift Attachments

The CPD25 can be configured according to the customer’s load type, required lifting height, working environment and material-handling application.

Available configurations may include:

• Different mast heights
• Two-stage or three-stage mast
• Side shifter
• Fork positioner
• Extended forks
• Additional hydraulic functions
• Warning and safety equipment
• Alternative tire configurations

Attachments can affect the forklift’s load center and residual lifting capacity, particularly when loads are lifted to greater heights.

OXPLO therefore recommends confirming the load weight, load dimensions, load center, required lifting height and attachment type before selecting the final mast and attachment configuration.

OXPLO Forklift Selection and Technical Support

OXPLO supports international customers with forklift selection, configuration guidance, technical documentation and spare-parts support.

To select a suitable CPD25 configuration, customers can provide:

• Maximum load weight
• Required lifting height
• Pallet or load dimensions
• Minimum aisle width
• Indoor or outdoor application
• Daily operating hours
• Required attachments
• Destination country or delivery location

Based on the actual working conditions, OXPLO can recommend a suitable forklift configuration, battery system, mast and attachments.

Frequently Asked Questions

Q1: How long can an OXPLO CPD25 electric forklift operate on one charge?

Actual operating time depends on battery capacity, load weight, lifting frequency, travel distance, gradients, working temperature and operator behaviour.

The CPD25 uses a 76.8V / 280Ah lithium battery. OXPLO can help evaluate expected operating time according to the customer’s actual duty cycle and shift requirements.

Q2: Is the CPD25 suitable for continuous or multi-shift operation?

The CPD25 can support extended working schedules when the battery capacity and charging arrangement are correctly matched to the application.

For longer daily operating hours, the charging strategy should be selected according to shift duration, available charging intervals and workload intensity.

Q3: Can the CPD25 electric forklift be used outdoors?

Yes. The CPD25 can be used on suitable level and paved outdoor surfaces when weather and operating conditions permit.

For muddy ground, deep gravel, potholes or highly uneven agricultural and construction sites, a dedicated rough-terrain forklift is generally more appropriate.

Q4: Does a lithium electric forklift still require maintenance?

Yes. Although the CPD25 eliminates many diesel-engine maintenance items, regular inspection is still required for the battery, charger, brakes, tires, hydraulic system, mast, lifting chains, forks and electrical connections.

Q5: Is a 2.5 ton electric forklift suitable for my application?

A 2.5 ton electric forklift should not be selected based only on maximum load weight.

Customers should also consider:

• Load dimensions
• Load center
• Required lifting height
• Attachment weight
• Mast configuration
• Residual lifting capacity

If the normal working load frequently approaches 2,500kg, has an extended load center or must be lifted to greater heights, a higher-capacity forklift may provide a more appropriate operating margin.

Q6: What information does OXPLO need before recommending a CPD25 configuration?

For a more accurate recommendation, provide the maximum load weight, load dimensions, lifting height, aisle width, daily operating hours, working surface, required attachments and delivery destination.

OXPLO can then recommend the appropriate battery, mast and attachment configuration for the application.

Request a CPD25 Forklift Recommendation

Looking for a 2.5 ton lithium electric forklift for warehouse, logistics or industrial material handling?

Send OXPLO the following information:

• Maximum load weight
• Required lifting height
• Pallet or load dimensions
• Minimum aisle width
• Indoor or outdoor application
• Daily operating hours
• Required attachments
• Destination country

OXPLO will help you select a suitable CPD25 electric forklift, including the battery configuration, mast height and attachments required for your operation.
