Moldel	OX35F
Engine	KW	National II emission standard Yunnei YN25 (37KW) 2500cc displacement
Transmission case	/	265B integrated chassis
Axle	/	Isuzu air brake axle
Tire	/	Small 20.5-16
Rated load capacity	Kg	/
Machineweight	Kg	4830
Size (L*W*H)	mm	6300*1985*2430
Cylinder size (mm)	mm	45/55
Cylinder size (mm)	mm	40/80
Hinge plate (mm)	mm	20
Wheel track	mm	1625
Wheel base	mm	1980
Clearance height of the gantry	mm	2290
Gate gantry inclination (forward/backward)	°	94°/98°
Maximum lift height of the fork	mm	5130
Fork thickness*width*length	mm	87/87/920
Load center distance	mm	/
Minimum ground clearance	mm	225
Counterweight type	/	Stamped counterweight

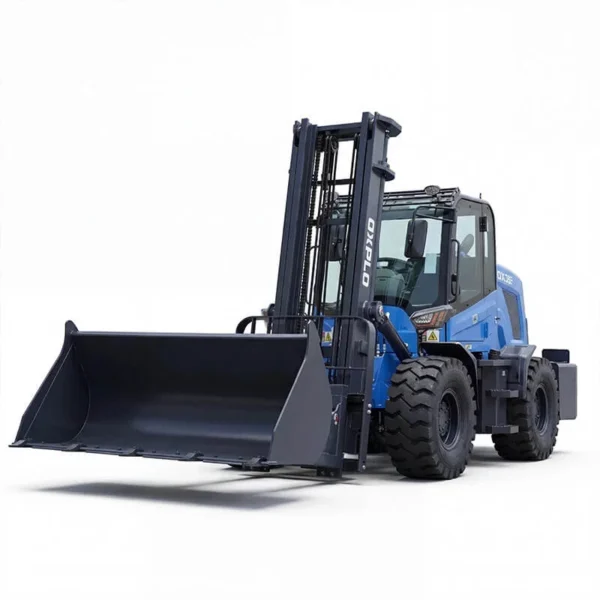

OXPLO OX35F Rough Terrain Forklift

3.5 Ton Diesel Rough Terrain Forklift for Outdoor Material Handling

The OXPLO OX35F is a 3.5 ton rough terrain forklift designed for outdoor material handling in construction yards, farms, agricultural facilities, timber yards, building-material sites and industrial storage areas.

Compared with a conventional warehouse forklift, the OX35F uses a wider chassis, large pneumatic tires and 225mm minimum ground clearance to provide better mobility on compacted soil, gravel and moderately uneven outdoor surfaces.

With a rated lifting capacity of 3,500kg, selectable two-stage or three-stage mast configurations and a diesel powertrain, the OX35F is designed for businesses that need to transport and lift heavy materials outside conventional paved warehouse environments.

Technical Specifications

Category	Parameter	OX35F Specification
Capacity	Rated lifting capacity	3,500kg
Mast	Two-stage mast lifting height	Up to 4.5m
	Three-stage mast lifting height	Up to 5m
	Maximum published fork lifting height	5,130mm
Engine & Drivetrain	Engine	Yunnei YN25 diesel engine
	Rated engine power	37kW
	Engine displacement	2,500cc
	Transmission	265B integrated transmission
	Axle	Isuzu air-brake axle
Dimensions	Overall dimensions (L × W × H)	6,300 × 1,985 × 2,430mm
	Wheelbase	1,980mm
	Wheel track	1,625mm
	Minimum ground clearance	225mm
Fork & Mast	Maximum fork lifting height	5,130mm
	Fork dimensions	87 × 87 × 920mm
Tires & Weight	Tire size	20.5-16
	Machine weight	4,830kg
Counterweight	Counterweight type	Stamped counterweight

3,500kg Lifting Capacity

The OX35F has a rated lifting capacity of 3,500kg, making it suitable for heavier pallets, agricultural products, construction materials, timber and industrial loads.

Different mast configurations can be selected according to the required lifting height and application:

• Two-stage mast: up to 4.5m
• Three-stage mast: up to 5m
• Maximum published fork lifting height: 5,130mm

Actual available lifting capacity can change according to the load center, lifting height, mast configuration, fork length and attachment weight.

For loads approaching the maximum rated capacity, customers should provide the actual load dimensions, center of gravity and required lifting height before selecting the final configuration.

Designed for Rough Terrain and Outdoor Operations

The OX35F is designed for operating conditions where a conventional warehouse forklift may have insufficient ground clearance or traction.

Its 225mm minimum ground clearance, wider chassis and large pneumatic tires provide improved ground adaptability on suitable outdoor surfaces.

Typical applications include:

• Construction and building-material yards
• Farms and agricultural facilities
• Agricultural processing sites
• Timber and lumber yards
• Rural warehouses
• Outdoor logistics and distribution yards
• Industrial storage areas
• Machinery and component handling

The OX35F is suitable for compacted soil, gravel and moderately uneven outdoor surfaces.

However, rough-terrain capability does not mean unrestricted off-road operation. Extremely soft mud, deep potholes, unstable ground, excessive side slopes or severe terrain should be evaluated carefully before operation.

Diesel Power for Outdoor Material Handling

The OX35F is equipped with a Yunnei YN25 diesel engine, providing the torque required for outdoor travel, lifting and material transport.

Key powertrain specifications include:

• Engine: Yunnei YN25
• Rated power: 37kW
• Displacement: 2,500cc
• Transmission: 265B integrated transmission
• Axle: Isuzu air-brake axle

The diesel powertrain makes the OX35F suitable for applications where long outdoor operating periods, remote working locations or limited charging infrastructure make an electric warehouse forklift less practical.

Engine and emission configurations should always be confirmed according to the actual machine supplied and the requirements of the destination market.

High Ground Clearance and Large Rough-Terrain Tires

Ground clearance and tire size are key differences between the OX35F and a conventional industrial counterbalance forklift.

The OX35F features:

• Minimum ground clearance: 225mm
• Tire size: 20.5-16
• Wheelbase: 1,980mm
• Wheel track: 1,625mm
• Overall width: 1,985mm

The larger tire and chassis configuration helps the forklift travel across gravel, compacted soil and moderately uneven surfaces while maintaining a stable working platform.

The trade-off is that the OX35F requires more operating space than a standard warehouse forklift. Customers should confirm gates, access roads, turning areas and loading zones before selecting the machine.

Stable Heavy-Duty Chassis

The OX35F has a machine weight of 4,830kg and overall dimensions of 6,300 × 1,985 × 2,430mm.

Its wider chassis, 1,980mm wheelbase and reinforced lifting structure are designed to support repeated outdoor lifting and transportation operations.

Key structural specifications include:

• Machine weight: 4,830kg
• Overall dimensions: 6,300 × 1,985 × 2,430mm
• Wheelbase: 1,980mm
• Wheel track: 1,625mm
• Minimum ground clearance: 225mm
• Stamped counterweight

This configuration provides a more suitable platform for rough-terrain material handling than a conventional low-clearance warehouse forklift.

Mast Configurations and Forklift Attachments

The OX35F can be configured according to the customer’s load type, required lifting height and working environment.

Available configurations may include:

• Two-stage mast
• Three-stage mast
• Different lifting heights
• Extended forks
• Side shifter
• Fork positioner
• Additional hydraulic functions
• Warning lights
• Reversing alarms
• Alternative tire configurations

Attachments can change the forklift’s load center and residual lifting capacity.

When selecting an attachment, particular attention should be given to:

• Maximum load weight
• Load dimensions
• Load center
• Required lifting height
• Fork length
• Attachment type
• Attachment weight
• Ground conditions

OXPLO recommends confirming the complete operating conditions before finalizing the mast, forks and attachment configuration.

Choosing the OX35F for Your Working Conditions

A rough terrain forklift should be selected according to both the load requirements and the ground conditions.

Before selecting the OX35F, customers should consider:

• Maximum load weight
• Load dimensions
• Required lifting height
• Ground surface
• Road condition
• Maximum working slope
• Turning and access space
• Daily operating hours
• Required attachments

For example, a customer handling 3,000kg pallets on a compacted gravel yard has very different operating requirements from a customer working on soft agricultural soil or a steep construction site.

Providing complete working-condition information helps determine whether the OX35F is suitable and which mast, forks, tires and attachments should be selected.

OXPLO Equipment Selection and Technical Support

OXPLO supports international customers with equipment selection, configuration guidance, technical documentation and spare-parts support.

To evaluate an OX35F configuration, customers can provide:

• Maximum load weight
• Load dimensions
• Load center
• Required lifting height
• Ground and road conditions
• Maximum operating slope
• Daily operating hours
• Required attachments
• Destination country or delivery location

Based on the actual working conditions, OXPLO can help recommend the appropriate mast, forks, tires and optional equipment.

Frequently Asked Questions

Q1: What is the lifting capacity of the OXPLO OX35F?

The OX35F has a rated lifting capacity of 3,500kg.

Actual available lifting capacity can vary according to the load center, mast height, fork length and installed attachments.

Customers handling loads close to 3,500kg should provide complete load dimensions and lifting requirements before ordering.

Q2: What is the difference between the OX35F and a standard warehouse forklift?

The OX35F is designed specifically for more demanding outdoor surfaces.

Compared with a typical warehouse forklift, it uses:

• Higher ground clearance
• Larger rough-terrain tires
• A wider chassis
• A diesel powertrain
• A structure designed for outdoor material handling

These characteristics make it more suitable for compacted soil, gravel yards and moderately uneven terrain.

Q3: Can the OX35F operate on mud and very uneven ground?

The OX35F can handle more challenging surfaces than a standard industrial forklift, but it is not designed to operate without limits.

Compacted soil, gravel and moderately uneven ground are more appropriate working surfaces.

Very soft mud, deep potholes, unstable ground and severe slopes should be evaluated carefully before operation.

Q4: What lifting heights are available?

The OX35F can be configured with different mast arrangements.

Available options include:

• Two-stage mast: up to 4.5m
• Three-stage mast: up to 5m

The published maximum fork lifting height is 5,130mm.

Actual residual lifting capacity at greater heights should be confirmed according to the selected mast and load conditions.

Q5: What engine does the OX35F use?

The current OX35F specification uses a Yunnei YN25 diesel engine rated at 37kW with a 2,500cc displacement.

Engine and emission configurations should be confirmed according to the machine supplied and the regulations of the destination market.

Q6: Is the OX35F suitable for agricultural applications?

Yes. The OX35F can be used for suitable agricultural material-handling applications such as moving pallets, packaged agricultural products, feed, supplies and other heavy materials.

Its higher ground clearance and large tires provide better adaptability to outdoor farm environments than a standard low-clearance warehouse forklift.

Actual suitability still depends on soil conditions, slopes, load weight and available operating space.

Q7: Can I install a side shifter or fork positioner?

Depending on the selected configuration, attachments such as side shifters, fork positioners and extended forks may be available.

Because attachments add weight and can change the load center, their effect on residual lifting capacity should be confirmed before ordering.

Q8: What information should I provide before ordering an OX35F?

For a more accurate recommendation, provide:

• Maximum load weight
• Load dimensions
• Load center
• Required lifting height
• Ground conditions
• Maximum slope
• Daily operating hours
• Required attachments
• Delivery destination

OXPLO can then help determine whether the OX35F rough terrain forklift is suitable and recommend an appropriate mast, forks, tires and optional equipment.

Request an OX35F Rough Terrain Forklift Recommendation

Looking for a 3.5 ton diesel rough terrain forklift for construction, agriculture, building-material handling or outdoor industrial operations?

Send OXPLO your load information, required lifting height, ground conditions, working slope, daily operating hours and required attachments.

OXPLO will help evaluate whether the OX35F rough terrain forklift is suitable for your application and recommend the corresponding mast, fork, tire and attachment configuration.
