Category	Parameter Item	Data / Specification (CPD15)
Capacity	Rated Lifting Load	1,500 kg (1.5 Tons)
	Load Center Distance	500 mm
Dimensions	Overall Length (With Fork)	3,000mm
	Overall Length (Without Fork)	2,210mm
	Overall Width	1,095mm
	Overhead Guard Height	2,070mm
	Wheelbase	1,400 mm
	Min. Ground Clearance (Mast)	110 mm
Mast & Fork	Free Lifting Height	130mm
	Mast Tilt Angle (Front/Rear)	6° / 12°
	Fork Size (LWT)	1,070 × 100 × 35 mm
Performance	Max. Travel Speed (Full/No-load)	14/ 15 km/h
	Max. Lifting Speed (Full/No-load)	380 / 450 mm/s
	Max. Gradeability (Full/No-load)	18% / 27%
Maneuverability	Min. Turning Radius (Outer)	2,085 mm
	Min. Right Angle Aisle Width	2,280 mm
Tires & Weight	Tire Size (Front / Rear)	6.5-10-10PR/ 5.00-8-10PR
	Total Forklift Weight	2,670 kg
	Battery Voltage/Capacity	76.5/175 Lithium

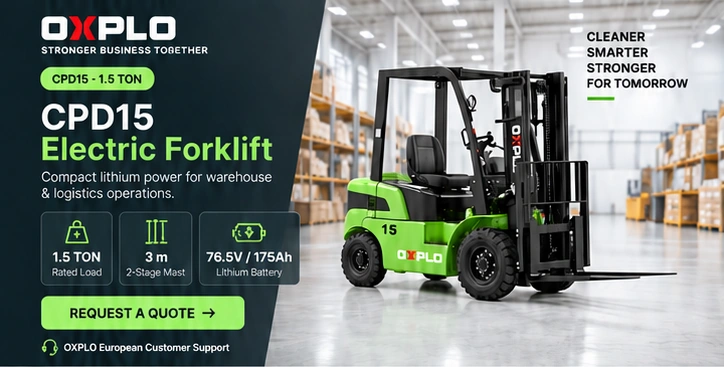

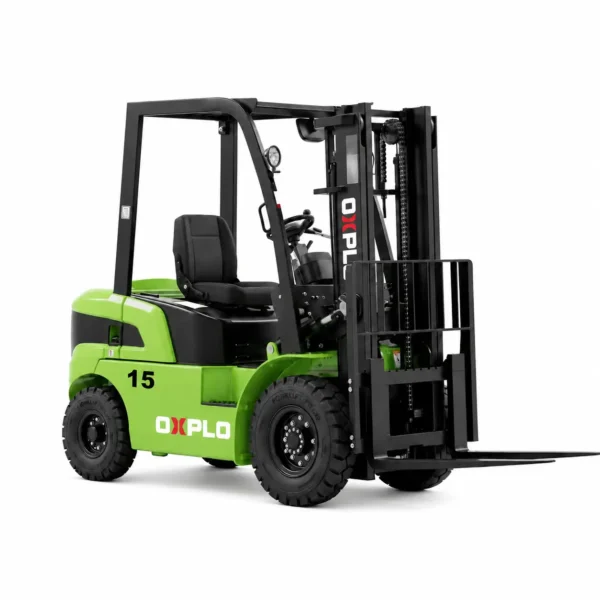

CPD15 Electric Forklift

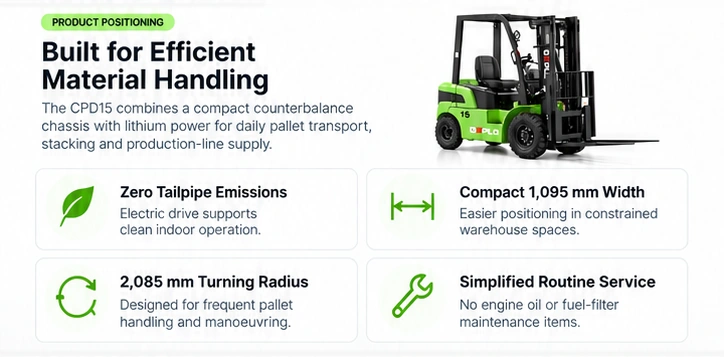

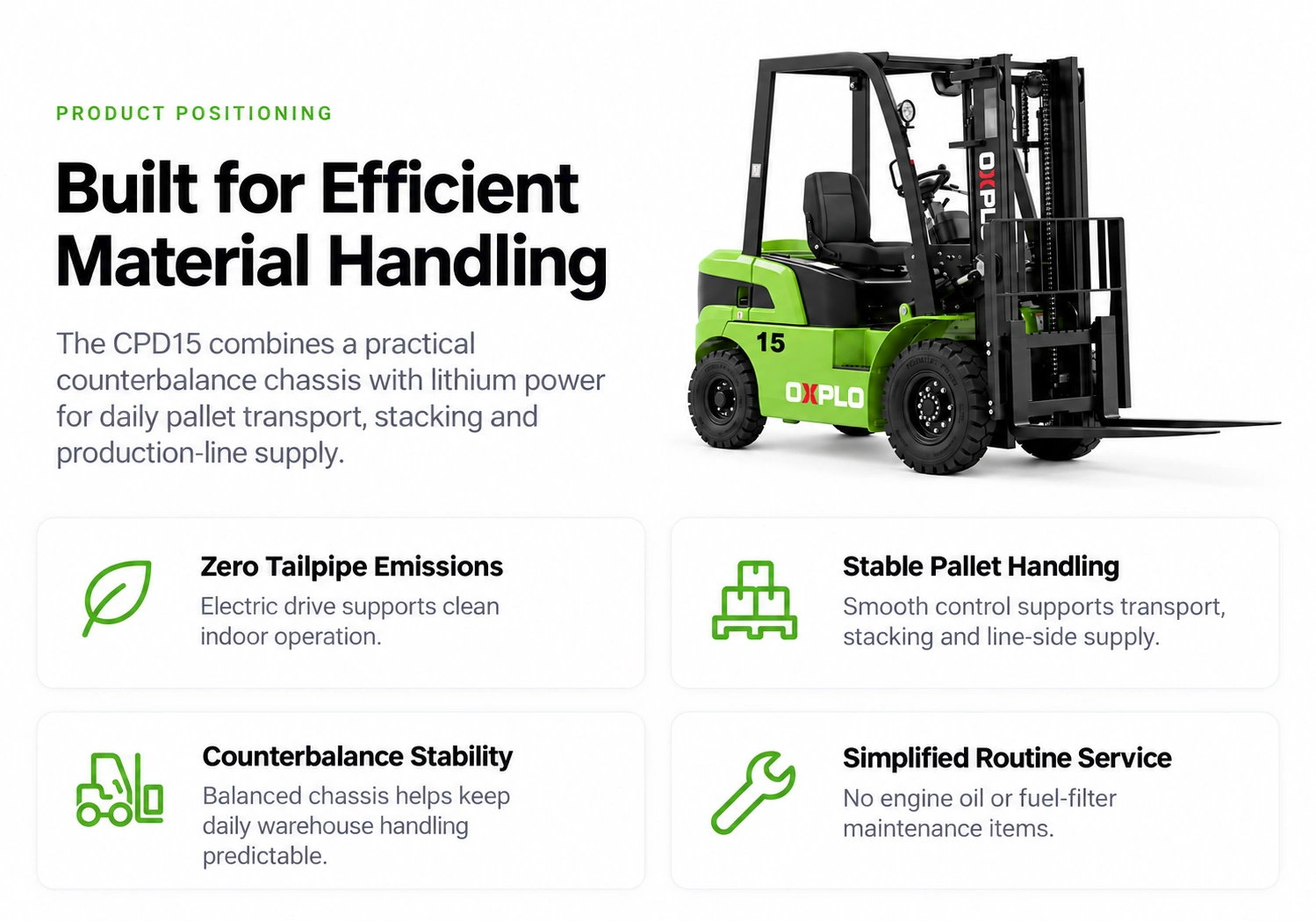

The OXPLO CPD15 is a compact 1.5-ton electric counterbalance forklift designed for efficient material handling in warehouses, logistics centers, manufacturing facilities and other indoor industrial environments.

Powered by a 76.5V/175Ah lithium-ion battery, the CPD15 delivers smooth acceleration, responsive lifting, quiet operation and zero tailpipe emissions. Its compact dimensions, precise steering and simplified maintenance requirements make it a practical alternative to conventional internal-combustion forklifts.

---

DETAILS

Core Performance Features

76.5V/175Ah Lithium Battery System

The CPD15 is equipped with a 76.5V/175Ah lithium-ion battery system that provides stable power for daily lifting and transport operations.

The intelligent Battery Management System monitors important battery conditions such as voltage, temperature and state of charge. It helps protect the battery against overcharging, over-discharging and overheating.

Flexible charging arrangements can be selected according to the customer’s shift schedule. Actual operating and charging times depend on load weight, lifting frequency, travel distance, operating temperature and charger configuration.

Clean and Quiet Operation

The electric drive system produces no tailpipe emissions and operates at a lower noise level than a diesel forklift. This makes the CPD15 suitable for:

• Indoor warehouses
• Logistics and distribution centers
• Manufacturing facilities
• Food and beverage storage
• Retail and supermarket warehouses
• Other noise-sensitive working environments

For cold-storage applications, the required battery, hydraulic oil and electrical configuration should be confirmed according to the actual operating temperature.

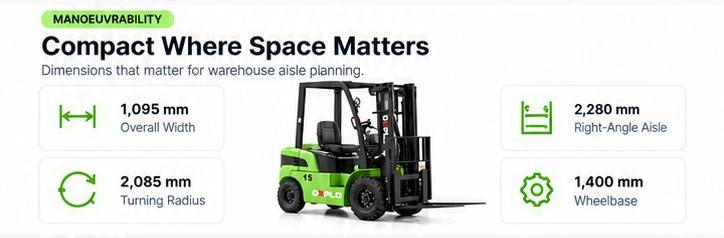

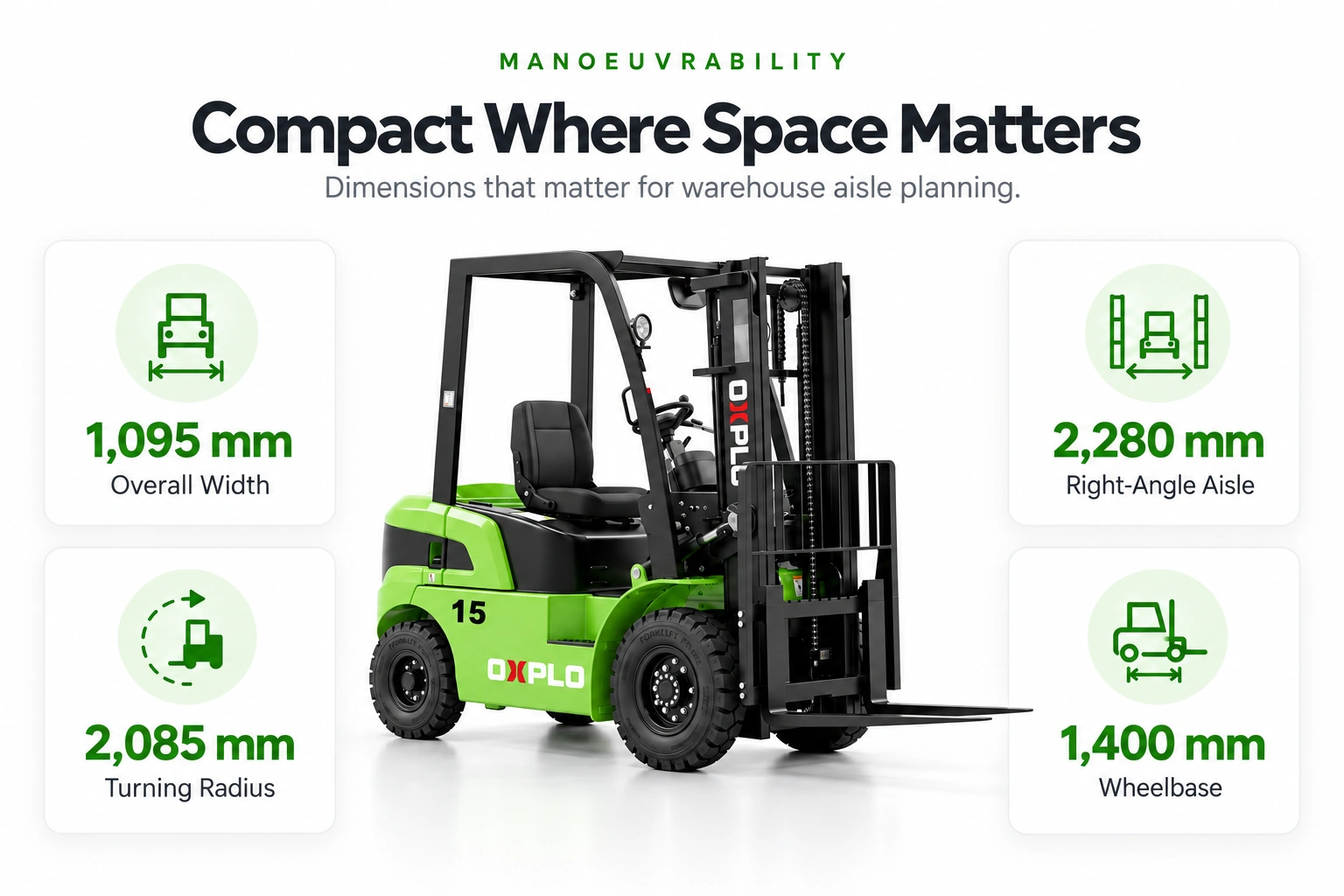

Maneuverability for Warehouse Operations

The CPD15 combines a compact body, responsive steering and controlled low-speed performance, making it suitable for pallet handling in warehouses and storage areas where working space is limited.

• Minimum outer turning radius: 2,085mm
• Minimum right-angle stacking aisle width: 2,280mm
• Overall forklift width: 1,095mm

These dimensions help the forklift maneuver efficiently in warehouse aisles and space-limited loading areas.

Actual aisle requirements may vary depending on pallet dimensions, fork length, mast type, attachment and required safety clearance.

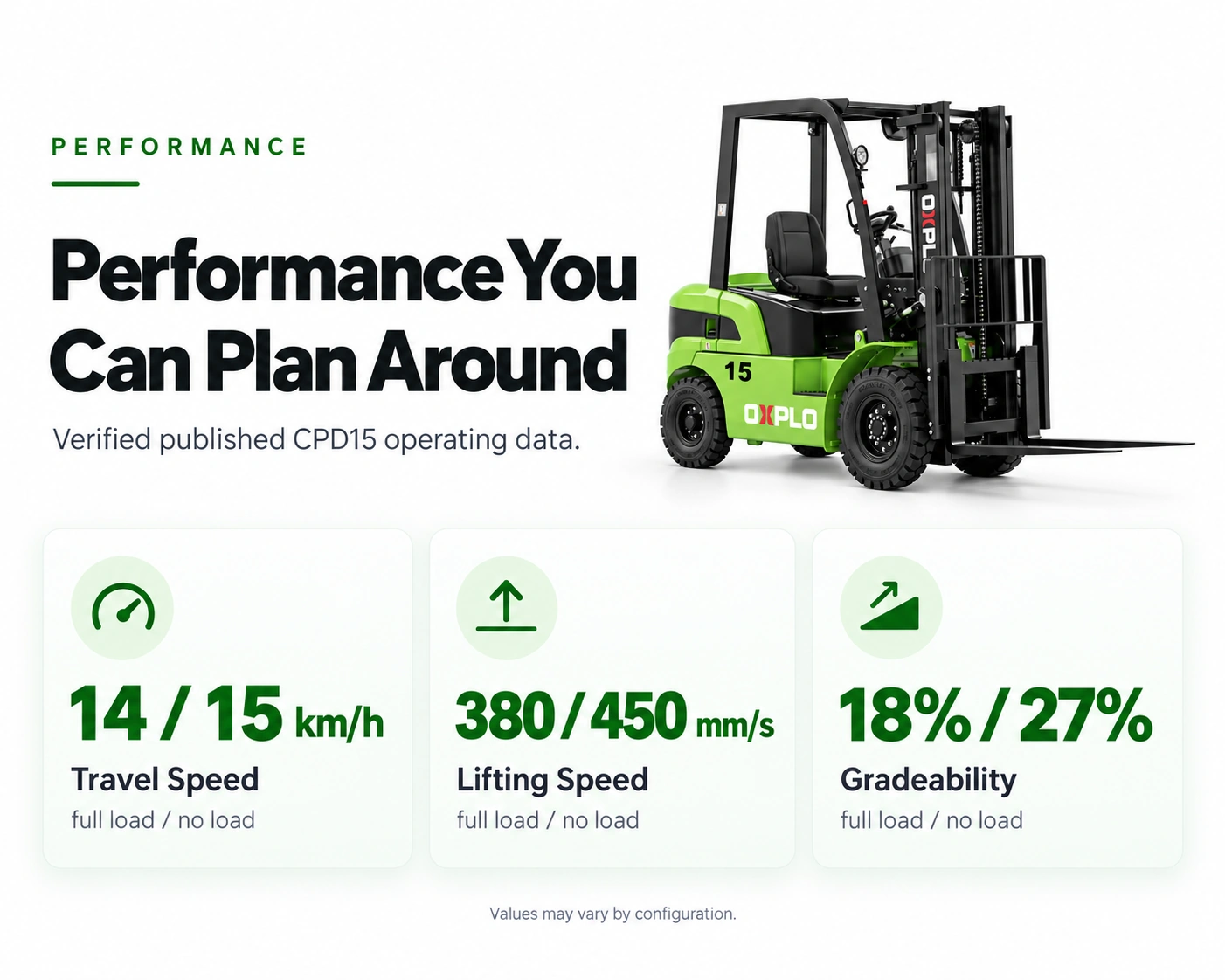

Stable Lifting and Ramp Performance

The CPD15 has a rated lifting capacity of 1,500kg at a 500mm load center. It is designed for pallet transport, stacking, production-line supply and loading operations involving small and medium-sized loads.

Under specified test conditions, its maximum gradeability is 18% with a full load and 27% without a load. This allows the forklift to handle suitable warehouse ramps and paved industrial yards.

The CPD15 is primarily intended for level or paved working surfaces. Muddy ground, deep gravel and severely uneven construction or agricultural sites generally require a dedicated rough-terrain forklift.

Operator Comfort and Safety

The operator area is designed to support comfortable and controlled daily operation. Clearly arranged controls, good mast visibility and responsive steering help the operator position loads accurately.

Depending on the selected configuration, optional safety equipment may include warning lights, reversing alarms, cameras and other operator-assistance features.

A digital instrument display provides essential operating information and helps the operator monitor forklift and battery conditions during operation.

Simplified Maintenance

Compared with an internal-combustion forklift, the CPD15 eliminates many routine engine-maintenance items, including engine oil changes, fuel-filter replacement and battery watering.

The accessible battery compartment allows technicians to inspect the lithium battery, controller and electrical connections more conveniently. The Battery Management System also helps identify abnormal battery conditions and supports preventive maintenance.

However, regular inspection is still required for:

• Battery and charging system
• Tires and wheel components
• Brakes and steering system
• Hydraulic oil and hoses
• Mast rollers and lifting chains
• Forks and attachments
• Electrical connections

This simplified service structure can reduce the daily maintenance workload and help improve equipment availability.

Durable Industrial Construction

The CPD15 uses a reinforced mast, stable chassis structure and heavy-duty pneumatic tires for daily industrial material handling.

• Front tire size: 6.5-10-10PR
• Rear tire size: 5.00-8-10PR
• Maximum lifting speed with load: 380mm/s
• Maximum travel speed with load: 14km/h
• Total forklift weight: 2,670kg

The chassis and lifting system are designed to support frequent pallet handling while maintaining stable operation throughout the working cycle.

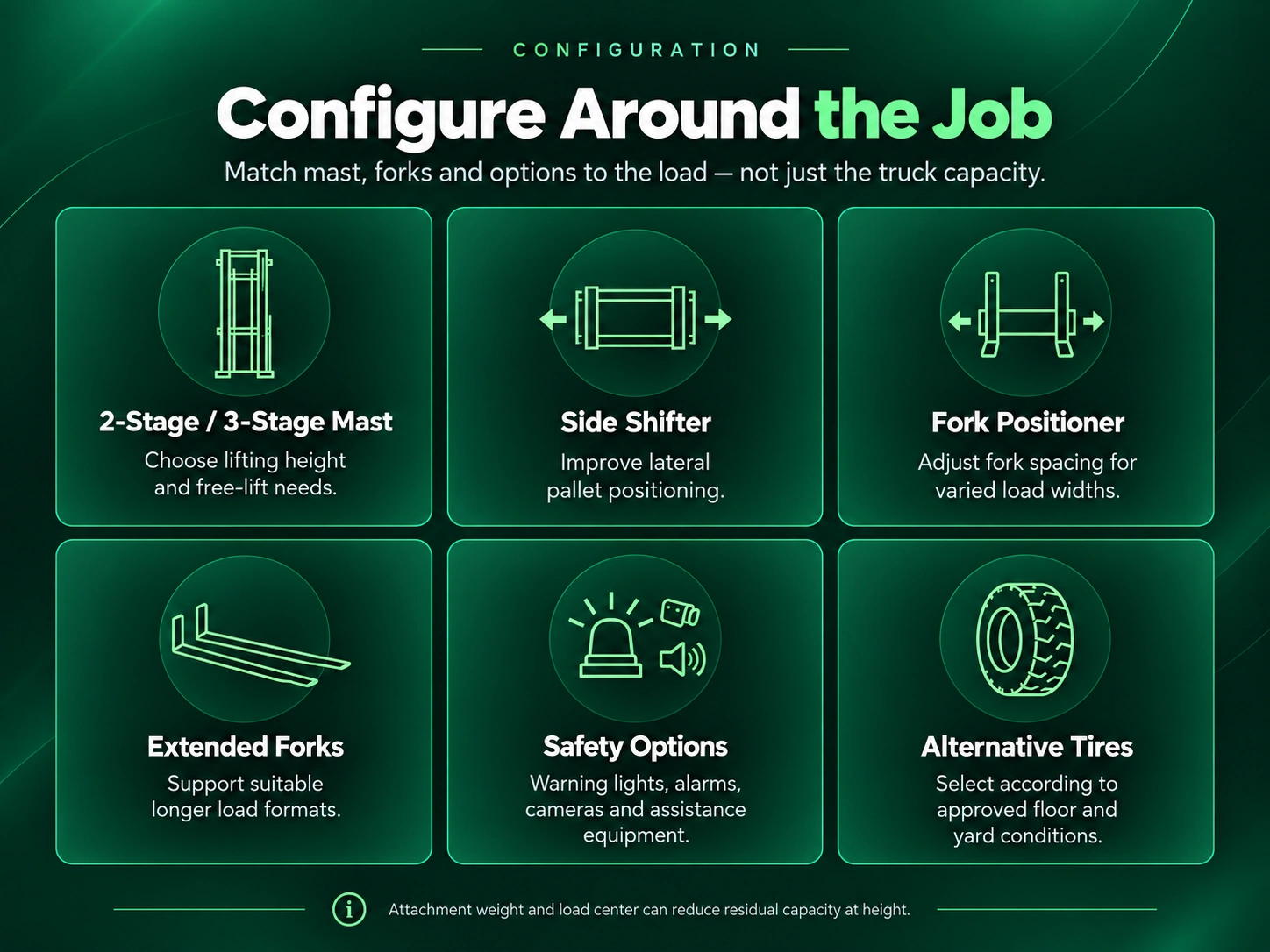

Configurations and Attachments

The CPD15 can be configured according to the customer’s load, lifting height and working environment. Available options may include:

• Different mast heights
• Two-stage or three-stage mast
• Side shifter
• Fork positioner
• Extended forks
• Additional hydraulic functions
• Warning and safety equipment
• Alternative tire configurations

The weight and load center of an attachment may reduce the forklift’s residual lifting capacity at height. OXPLO recommends confirming the complete working conditions before selecting the mast and attachment.

OXPLO Support for European Customers

OXPLO provides forklift selection assistance, technical support and spare-parts services for customers in Europe.

Customers can provide their maximum load weight, required lifting height, pallet dimensions, aisle width, daily operating hours, working environment and delivery location. Based on these requirements, the OXPLO team can recommend a suitable forklift capacity, battery system, mast and attachment configuration.

For applications involving narrow aisles, high lifting heights, outdoor operation or extended working shifts, providing detailed operating conditions will help OXPLO recommend a more suitable configuration.

Frequently Asked Questions

Q1: How long can an OXPLO electric forklift work on one charge?

Operating time depends on battery capacity, load weight, lifting frequency, travel distance, gradients, operating temperature and operator behavior. OXPLO can estimate the expected working time after reviewing the customer’s actual duty cycle and shift requirements.

Q2: Is the CPD15 suitable for continuous operation?

The CPD15 can support extended operating schedules when the battery capacity and charging plan are properly matched to the customer’s shift arrangement. Opportunity charging or an alternative charging strategy may be recommended for longer working hours.

Q3: Can the CPD15 electric forklift be used outdoors?

Yes. The CPD15 can be used on suitable level and paved outdoor surfaces when weather and equipment conditions permit. For mud, deep gravel, potholes or severely uneven agricultural and construction sites, a dedicated rough-terrain forklift is generally more appropriate.

Q4: Does an electric forklift require maintenance?

Yes. Although the CPD15 eliminates many diesel-engine maintenance items, its battery, charger, brakes, tires, hydraulic system, mast, forks and electrical connections still require regular inspection and preventive maintenance.

Q5: Is a 1.5-ton electric forklift suitable for my loads?

The decision should be based on more than maximum load weight. Load dimensions, load center, required lifting height, attachments and residual lifting capacity must also be considered.

If the normal load approaches 1,500 kg, has an extended load center or is frequently handled at greater lifting heights, a higher-capacity forklift may provide a more appropriate operating margin.

Q6: Are spare parts and after-sales services available in Europe?

OXPLO provides technical support and spare-parts assistance for customers in Europe. Common replacement parts can be supplied for supported models, while parts availability and service arrangements should be confirmed according to the forklift model and customer location.

Request a Forklift Recommendation

Send OXPLO the following information to receive a suitable forklift recommendation:

• Maximum load weight
• Required lifting height
• Pallet or load dimensions
• Minimum aisle width
• Indoor or outdoor application
• Floor or ground conditions
• Daily operating hours
• Required attachments
• Delivery country and location

The OXPLO team will recommend a suitable forklift capacity, battery configuration, mast and attachments according to your operating requirements.
