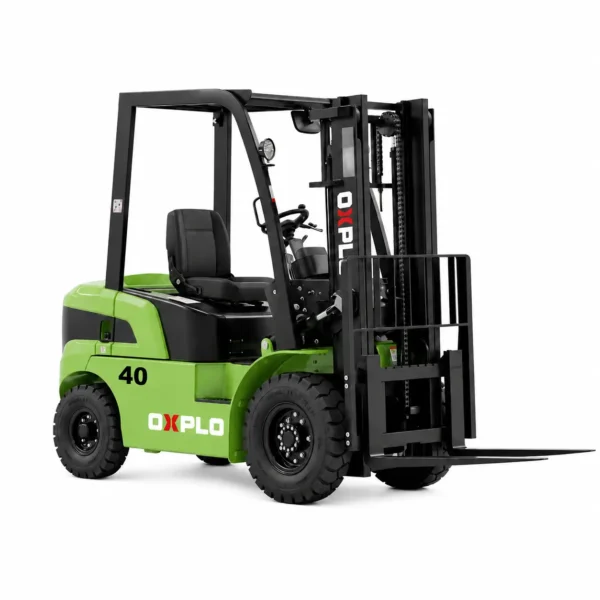

OXPLO CPD40 Electric Forklift

4,000kg Lithium Electric Forklift for Heavy-Duty Material Handling

The OXPLO CPD40 is a 4 ton electric forklift designed for heavier pallet transport, stacking, loading and industrial material-handling applications.

With a rated lifting capacity of 4,000kg at a 500mm load center, a 76.8V / 280Ah lithium battery system and a reinforced industrial chassis, the CPD40 provides an electric alternative for operations that require higher load capacity without the exhaust emissions associated with an internal-combustion forklift.

It is suitable for warehouses, manufacturing facilities, logistics centers and paved industrial yards where stable lifting performance, controlled maneuverability and lower operating noise are important.

Technical Specifications

Category	Parameter	CPD40 Specification
Capacity	Rated lifting capacity	4,000kg
	Load center distance	500mm
Dimensions	Overall length with fork	4,135mm
	Overall length without fork	2,915mm
	Overall width	1,225mm
	Overhead guard height	2,150mm
	Wheelbase	1,860mm
	Minimum ground clearance at mast	130mm
Mast & Fork	Free lifting height	135mm
	Mast tilt angle, front / rear	6° / 12°
	Fork size (L × W × T)	1,220 × 125 × 50mm
Performance	Maximum travel speed, full / no load	20 / 20km/h
	Maximum lifting speed, full / no load	380 / 420mm/s
	Maximum gradeability, full / no load	15% / 18%
Maneuverability	Minimum outer turning radius	2,615mm
	Minimum right-angle stacking aisle width	2,600mm
Tires & Weight	Front / rear tire size	250-15 / 6.50-10
	Total forklift weight	5,050kg
Battery	Battery voltage / capacity	76.8V / 280Ah lithium-ion

Core Performance Features

76.8V / 280Ah Lithium Battery System

The OXPLO CPD40 is equipped with a 76.8V / 280Ah lithium-ion battery system, providing stable electrical power for lifting, travel and daily industrial material-handling operations.

The intelligent Battery Management System monitors key battery conditions, including voltage, temperature and state of charge. It helps protect the battery against overcharging, over-discharging and overheating.

Charging arrangements can be selected according to the customer’s operating schedule and available charging periods.

Actual operating time and charging time vary depending on:

• Load weight
• Lifting frequency
• Travel distance
• Gradient
• Working temperature
• Operator behaviour
• Charger configuration

For applications requiring longer daily operating hours or multiple shifts, OXPLO recommends confirming the duty cycle and charging schedule before selecting the final configuration.

Clean and Quiet Electric Operation

The CPD40 electric powertrain produces no tailpipe emissions during operation and operates at a lower noise level than a comparable diesel forklift.

This makes the CPD40 suitable for applications such as:

• Indoor warehouses
• Logistics and distribution centers
• Manufacturing plants
• Building-material warehouses
• Production and assembly facilities
• Loading and unloading areas
• Industrial material-handling operations
• Other environments where reduced exhaust emissions and lower noise are preferred

For cold-storage or low-temperature applications, the required battery, hydraulic oil and electrical configuration should be confirmed according to the actual operating temperature.

4,000kg Heavy-Duty Lifting Capacity

The OXPLO CPD40 has a rated lifting capacity of 4,000kg at a 500mm load center, positioning it above standard 2–3 ton warehouse forklifts for heavier industrial loads.

It can be used for applications including:

• Heavy pallet transport
• Rack stacking
• Production-line material supply
• Truck loading and unloading
• Building-material handling
• Machinery and component handling
• General industrial logistics

Its maximum lifting speed is 380mm/s with a full load and 420mm/s without a load, supporting efficient handling during repeated lifting cycles.

Rated capacity applies under the specified load-center and mast conditions.

If the load center exceeds 500mm, a higher mast is installed or a heavy attachment is used, the forklift’s available residual lifting capacity may be reduced.

Maneuverability for Heavy Industrial Operations

Higher load capacity also requires more working space than a smaller warehouse forklift. The CPD40 is therefore designed to balance its 4 ton lifting capability with practical maneuverability.

Key maneuverability dimensions include:

• Minimum outer turning radius: 2,615mm
• Minimum right-angle stacking aisle width: 2,600mm
• Overall width: 1,225mm
• Wheelbase: 1,860mm

These dimensions allow the CPD40 to maneuver in suitable warehouse aisles, loading areas and industrial facilities while handling heavier loads.

Actual aisle requirements depend on pallet dimensions, fork length, mast configuration, attachments and required safety clearance.

Customers should confirm their warehouse layout and operating space before selecting the final forklift configuration.

Stable Ramp and Travel Performance

The CPD40 provides a maximum travel speed of:

• 20km/h with a full load
• 20km/h without a load

Under specified test conditions, maximum gradeability is:

• 15% with a full load
• 18% without a load

This provides practical ramp performance for suitable warehouse access ramps and paved industrial yards.

However, the CPD40 is primarily intended for level or paved operating surfaces.

Muddy ground, deep gravel, severe potholes and highly uneven construction or agricultural sites generally require a dedicated rough-terrain forklift rather than a standard industrial electric forklift.

Operator Comfort and Controlled Handling

The CPD40 operator area is designed to support controlled daily operation when handling heavier industrial loads.

Clearly arranged controls, mast visibility and responsive steering help the operator position pallets and materials accurately.

A digital instrument display provides essential operating information and allows the operator to monitor forklift and battery conditions during operation.

Depending on the selected configuration, available safety and operator-assistance equipment may include:

• Warning lights
• Reversing alarms
• Cameras
• Additional work lights
• Operator-protection equipment
• Other safety accessories

Available options should be confirmed according to the customer’s working environment and selected forklift configuration.

Simplified Electric Forklift Maintenance

Compared with an internal-combustion forklift, the CPD40 lithium electric forklift eliminates a number of routine engine-related service requirements.

There is no diesel engine requiring items such as:

• Engine oil changes
• Fuel-filter replacement
• Engine belt servicing
• Other routine combustion-engine maintenance

The accessible electrical system allows technicians to inspect the lithium battery, controller and electrical connections more conveniently.

The Battery Management System also assists with monitoring battery operating conditions and identifying abnormal battery conditions.

However, electric does not mean maintenance-free.

Regular inspection is still required for:

• Lithium battery and charging system
• Tires and wheel components
• Brakes and steering system
• Hydraulic oil and hoses
• Mast rollers
• Lifting chains
• Forks and attachments
• Electrical connections

This simplified powertrain can reduce engine-related routine maintenance compared with conventional internal-combustion forklifts while supporting reliable daily operation.

Durable Industrial Construction

The OXPLO CPD40 uses a reinforced mast, stable chassis structure and heavy-duty pneumatic tires to support frequent handling of heavier industrial loads.

Key structural and operating specifications include:

• Total forklift weight: 5,050kg
• Front tire size: 250-15
• Rear tire size: 6.50-10
• Fork dimensions: 1,220 × 125 × 50mm
• Mast tilt angle: 6° forward / 12° backward
• Minimum ground clearance at mast: 130mm

The chassis and lifting system are designed for repeated pallet transport, stacking and loading operations in warehouse and industrial environments.

The CPD40 should still be matched to the actual working surface. For loose soil, deep gravel, mud or severely uneven terrain, OXPLO recommends considering a dedicated rough-terrain forklift.

Mast Configurations and Forklift Attachments

The CPD40 can be configured according to the customer’s load type, required lifting height and material-handling application.

Available configurations may include:

• Different mast heights
• Two-stage or three-stage mast
• Side shifter
• Fork positioner
• Extended forks
• Additional hydraulic functions
• Warning and safety equipment
• Alternative tire configurations

When handling loads approaching 4,000kg, forklift selection should not be based on load weight alone.

Particular attention should be given to:

• Actual load weight
• Load dimensions
• Load center
• Required lifting height
• Mast configuration
• Attachment type
• Attachment weight
• Required residual lifting capacity

Attachments and extended load centers may significantly affect available lifting capacity at height.

OXPLO recommends confirming the complete working conditions before selecting the final CPD40 mast and attachment configuration.

OXPLO Forklift Selection and Technical Support

OXPLO supports international customers with forklift selection, configuration guidance, technical documentation and spare-parts support.

To determine whether the CPD40 is suitable for an application, customers can provide:

• Maximum load weight
• Required lifting height
• Pallet or load dimensions
• Actual load center
• Minimum aisle width
• Indoor or outdoor application
• Daily operating hours
• Working surface
• Required attachments
• Destination country or delivery location

Based on these operating conditions, OXPLO can help recommend a suitable forklift, battery, mast and attachment configuration.

Frequently Asked Questions

Q1: What is the rated lifting capacity of the OXPLO CPD40?

The CPD40 has a rated lifting capacity of 4,000kg at a 500mm load center.

Actual available lifting capacity may change when using higher masts, attachments or loads with an extended load center.

For heavy or unusually shaped loads, OXPLO recommends confirming the complete load dimensions and lifting height before ordering.

Q2: How long can the CPD40 operate on one charge?

The CPD40 uses a 76.8V / 280Ah lithium-ion battery system.

Actual operating time depends on the load weight, lifting frequency, travel distance, gradients, working temperature, operator behaviour and charger configuration.

OXPLO can help evaluate expected operating time according to the customer’s duty cycle and shift arrangement.

Q3: Can the CPD40 support extended daily operating hours?

The CPD40 can support longer operating schedules when the battery and charging arrangement are correctly matched to the required duty cycle.

Customers operating multiple shifts or long daily working hours should provide their operating schedule so that a suitable charging arrangement can be evaluated.

Q4: Can the CPD40 electric forklift be used outdoors?

Yes. The CPD40 can be used on suitable level and paved outdoor surfaces when weather and operating conditions permit.

It is not designed as an off-road forklift.

For mud, deep gravel, severe potholes or highly uneven construction and agricultural surfaces, a dedicated rough-terrain forklift is generally more suitable.

Q5: Is a 4 ton electric forklift suitable for my load?

The decision should be based on more than the maximum load weight.

Customers should also consider:

• Load dimensions
• Load center
• Required lifting height
• Attachment weight
• Mast configuration
• Residual lifting capacity

The CPD40’s 4,000kg rating applies at the specified 500mm load center under the relevant rated conditions.

A longer load, higher lifting height or heavy attachment can reduce the forklift’s available lifting capacity.

Q6: How much aisle space does the CPD40 require?

The CPD40 has a minimum outer turning radius of 2,615mm and a minimum right-angle stacking aisle width of 2,600mm according to the current specification.

Actual operating-space requirements depend on pallet dimensions, fork length, attachments and required safety clearance.

OXPLO recommends confirming the warehouse layout before selecting the machine.

Q7: Does the CPD40 require maintenance?

Yes.

Although the electric powertrain eliminates many diesel-engine maintenance items, regular inspection is still required for the lithium battery, charger, hydraulic system, brakes, steering system, tires, mast, lifting chains, forks and electrical connections.

Q8: What information should I provide before ordering a CPD40?

For a more accurate configuration recommendation, provide:

• Maximum load weight
• Load dimensions
• Load center
• Required lifting height
• Minimum aisle width
• Daily operating hours
• Working surface
• Required attachments
• Delivery destination

OXPLO can then help determine the appropriate CPD40 configuration for the application.

Request a CPD40 Forklift Recommendation

Looking for a 4 ton lithium electric forklift for warehouse, manufacturing, logistics or heavy industrial material handling?

Send OXPLO your working-condition information, including maximum load weight, lifting height, load dimensions, aisle width, daily operating hours and required attachments.

OXPLO will help you determine whether the CPD40 electric forklift is suitable and recommend the corresponding battery, mast and attachment configuration for your operation.
