OXT504 50 HP 4WD Farm Tractor

More Power for Livestock, Grassland and Productive Mixed-Farm Work

The OXPLO OXT504 is the highest-powered model in the compact OXT chassis group. Its 50 HP output, four-wheel drive, 8F + 8R gearbox and Category I linkage make it a practical option for livestock farms, grassland maintenance, farm transport and more frequent PTO-driven work where a compact overall width remains important.

Maximum Output in the Compact OXT Platform

The OXT504 is differentiated by power density: it retains the listed 3,180 × 1,560 mm compact footprint of the 25–40 HP models but increases rated output to 50 HP. It is aimed at customers with greater seasonal workloads who still rely on Category I implements and do not require the longer wheelbase, larger tyres and Category II linkage of the OXT604.

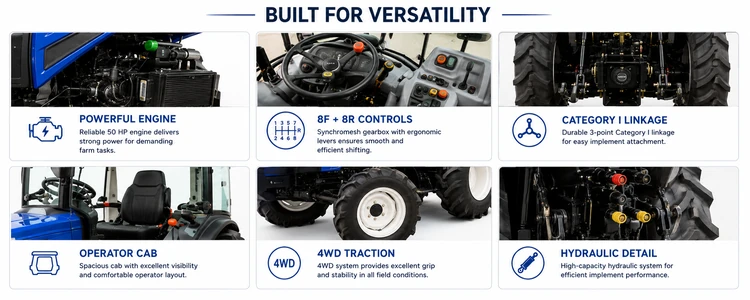

Key Product Advantages

50 HP for More Frequent Work

The 37 kW / 50 HP rated output provides additional capacity for grassland maintenance, soil preparation, spreading and farm transport. Correct implement matching remains essential, particularly on a compact Category I platform.

4WD Traction in Fields and Farmyards

Four-wheel drive improves grip on grass, loose soil and changing yard surfaces, helping the tractor maintain useful traction during seasonal and day-to-day farm work.

Compact Width for Practical Access

The listed 1,560 mm width allows the OXT504 to retain access advantages that can be lost with a larger utility tractor. Buyers should compare full dimensions with gates, buildings and rows.

8F + 8R Gearbox

A straightforward eight-forward and eight-reverse transmission supports field speeds, transport and manoeuvring without the extra ratio range of the larger OXT604.

Category I Linkage with 540/720 rpm PTO

The published specification lists a Category I rear linkage and six-spline 540/720 rpm PTO. Confirm the final PTO configuration and implement requirements on the quotation before purchase.

Suitable Applications

Livestock Farms

Pasture maintenance, feed support, material movement and regular transport.

Grassland and Hay Support

Mowing and related work with correctly matched Category I equipment.

Mixed Farms

Cultivation, spreading, transport and multiple seasonal jobs.

Estates and Professional Grounds

Higher-frequency mowing and property maintenance where compact access remains valuable.

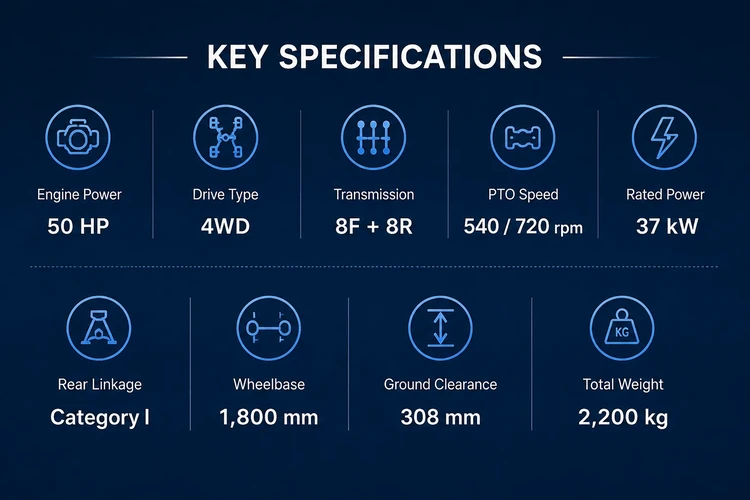

Technical Specifications

Specifications are based on currently published product information. Engine, tyres, operator station, lighting, guarding, attachments and destination-market equipment may vary. Request a confirmed specification sheet before ordering.

Why Choose the OXPLO OXT504?

• 50 HP—the highest rated output in the compact OXT chassis group
• Compact 1,560 mm listed width
• 4WD traction for mixed surfaces
• 8F + 8R gearbox for straightforward operation
• Category I linkage for existing compact implements
• Suitable for buyers who need more output but not the OXT604’s larger Category II platform

Configured Around Your Application

Tell OXPLO where the OXT504 will operate, which implements it must use, the expected annual workload and the destination country. The team can then confirm tyres, linkage and PTO compatibility, operator-station equipment, optional loader requirements and available market documentation.

Frequently Asked Questions

Q1. How is the OXT504 different from the OXT404?

The two models share the same published chassis dimensions, gearbox, linkage and tyre sizes. The OXT504 increases rated output from 40 HP to 50 HP and is listed with a different PTO speed combination.

Q2. When should I choose the OXT604 instead?

Choose the OXT604 when you need Category II implement compatibility, a 12F + 12R transmission, larger tyres, a longer wheelbase or a heavier utility-tractor platform.

Q3. What PTO speed does the OXT504 use?

The selected parameter source lists 540/720 rpm. Because another OXPLO page contains conflicting PTO data, the final quotation and specification sheet should state the exact supplied configuration.

Q4. What must be confirmed for a European order?

Confirm engine emissions, operator protection, braking, lighting, tyre options, road-use requirements, loader specifications and conformity documents for the destination country.
